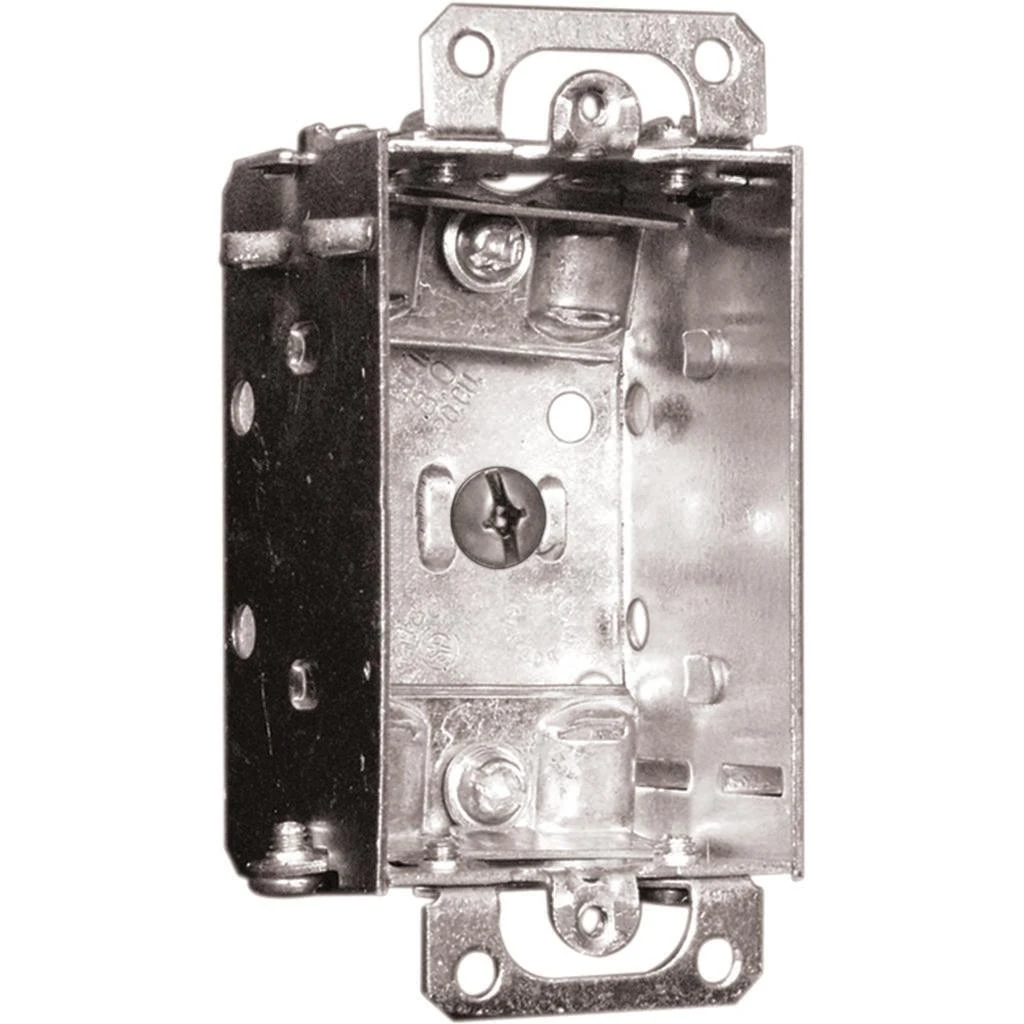

Hubbell Canada Hubbell Device Box 2″x3″X1.5″, Model 1100LUBAR

Description

Metal Device Boxes are used for outlets, switches, ceiling fixtures, and small junction boxes. They keep wires dry and are popular for surface mounted applications.

Single Gang Device Box, Gangable, 1-1/2 in. Deep, 8 Cu. In., with Raised Ground Screw, Flush Ears, Cable Pryouts Ends, NMD90 and AC90

Benefits

• Raised Ground Screw
• Flush Ears
• Cable Pryouts Ends
• Gangable; can join boxes together
• CSA/UL Approved

Technical Information

Application: Device boxes are used to house wiring devices such as switches or receptacles. Plaster ears allow box to be used in rework application.
Bracket Type: No Bracket
Color: Gray
Drawn or Welded: Welded
Ends Cable:  4
Gangable: Yes
Material: Steel
Number of Gang(s): 1-Gang
Plaster Ears: Yes
Type: Switch Box
UPC: 626463020685
Wiring System: Non-Metallic Sheathed (NMD)/ Armored Cable (AC)
Actual Depth: 1.5″
Width: 2″
Height: 4″
Raised Ground: Yes
Weight: 0.356 lb
Cable Entry: Universal Cable Clamps
Certified Listed: CSA
