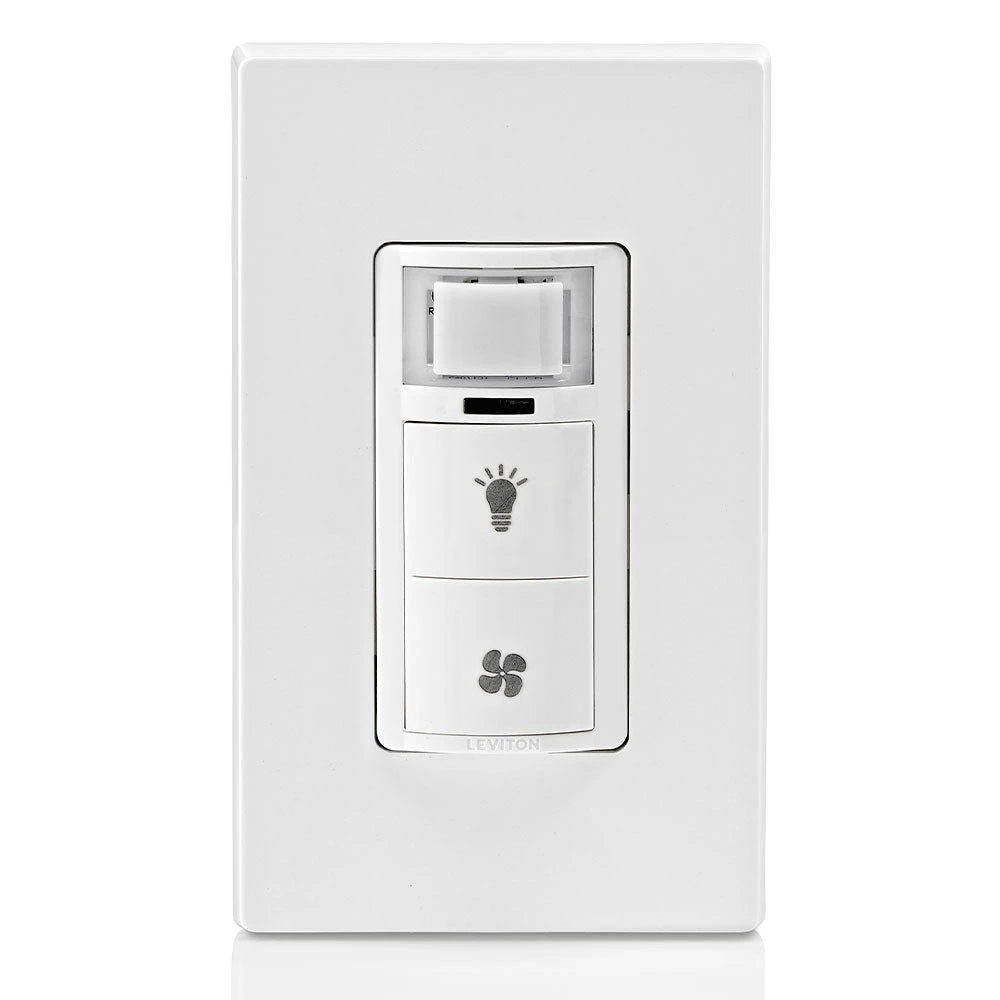

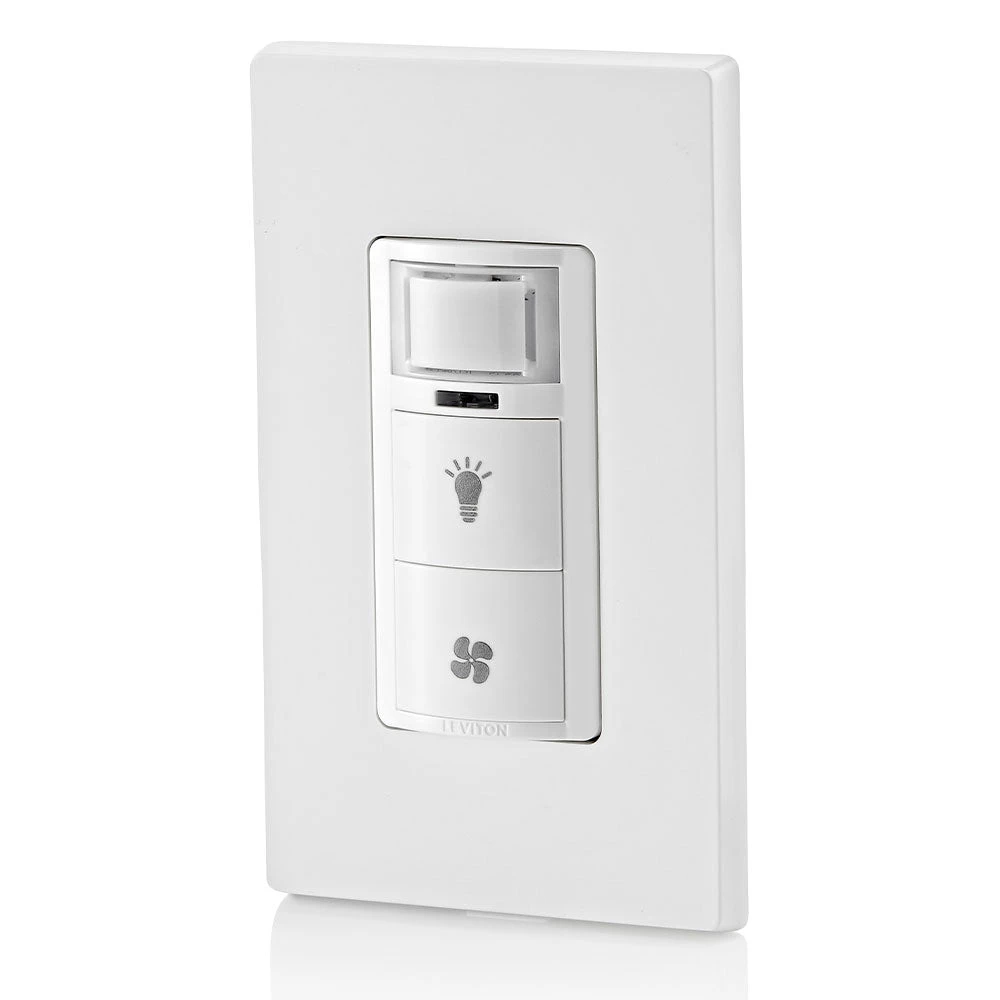

Leviton Decora In-Wall Comination Humidity Sensor And Fan Control With Light Switch, Model DHD05-1LW*

Description

The Leviton Humidity Sensor and Fan Control automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation, which helps reduce mold and mildew. Additionally, the device helps reduce energy usage by automatically operating the fan only when needed. The sensor uses a microprocessor combined with state-of-the-art digital sensing technology to continuously monitor and manage humidity levels when installed in areas of the home prone to condensation and mildew. It features user-friendly controls to adjust sensitivity, humidity level and time out settings. The sensor can replace a single pole switch (DHS05) or a combination switch (DHD05) and can be used with most bathroom or ventilation fans or fan/light combinations. These devices offer flexible installation options, including wiring with a neutral or by using an earth ground connection, and a slim profile for ease of installation.

Features

• Ideal for Bathroom, basement, laundry room and home spa
• Replaces a combination switch for separate control of fan and lighting
• Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
• Helps reduce energy usage by automatically operating the fan only when needed
• For use with ventilation fans up to ¼ HP
• Compatible with LED, CFL, Incandescent, Halogen, MLV and ELV lighting loads

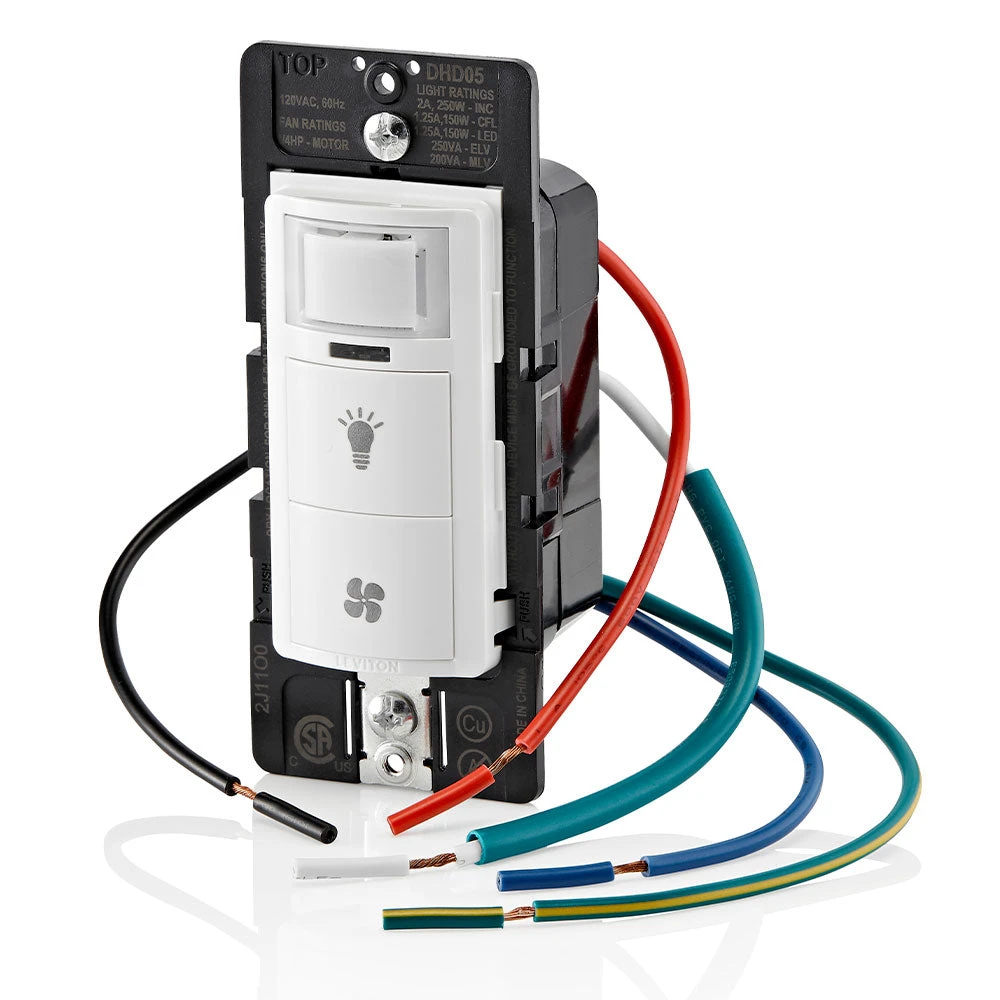

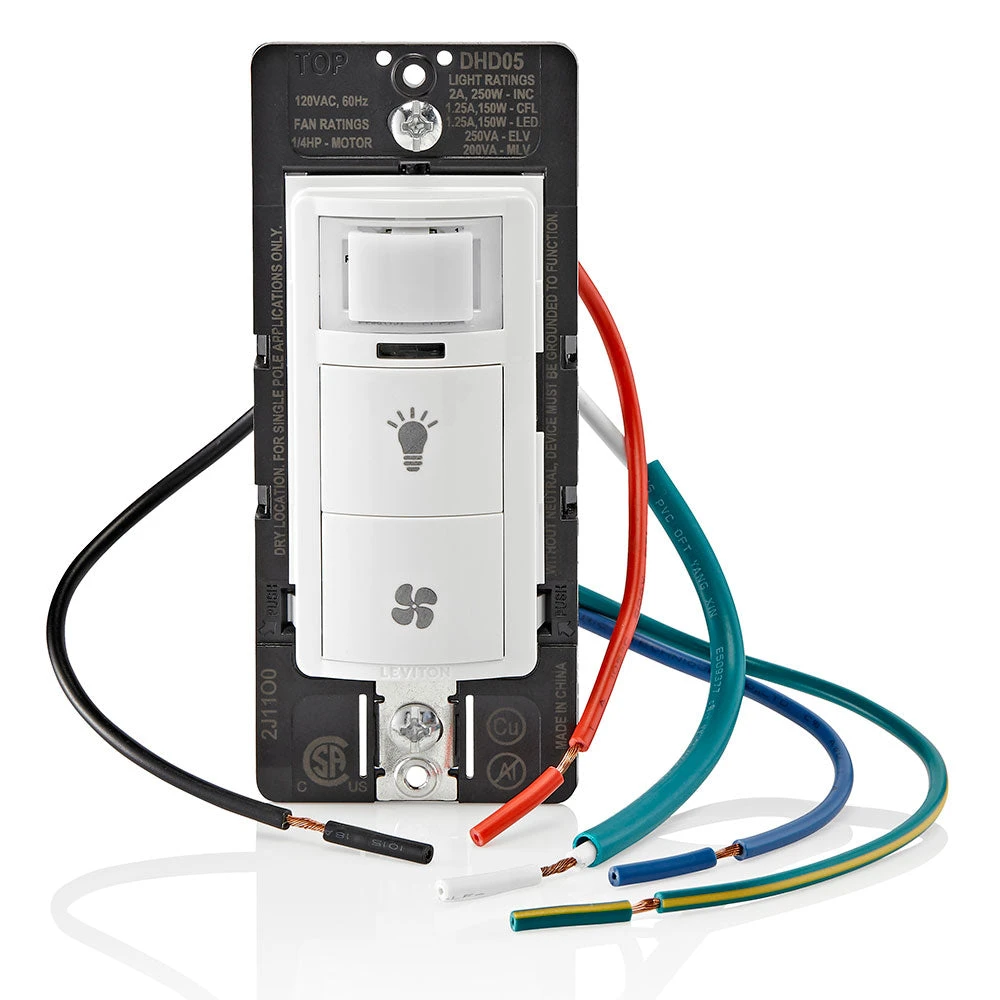

• Can be connected to Neutral wire if Neutral is present in the wallbox; or to Earth ground if no Neutral wire is present in the wallbox
• Microprocessor control with digital sensing technology
• Zero Cross turn-on technology extends the life of switching relays
• Advanced sensing enhances detection when the room is occupied and minimizes false triggers when unoccupied
• Operating Modes for bath fan, air cycle and humidistat
• Test mode to help with sensor placement and setting adjustments
• Can be used to comply with the requirements of 2019/2022 California Title 24, Part 6, Indoor Air Quality and Mechanical Ventilation
• Complies with the requirements of 2019/2022 CALGREEN, Part II, Indoor Air Quality and Exhaust
• Meets requirements of ASHRAE 62.2
• Color change kits are available in Black, Brown, Gray, Ivory, Light Almond and White (DHDKT-00x)
• Five-Year Limited warranty

Technical Information

Adjustment: Programmable
Color: White
Dimensions: W 1.73″ X D 0.95″ X H 4.13″
Grade: Residential
LED Color: Green and Red

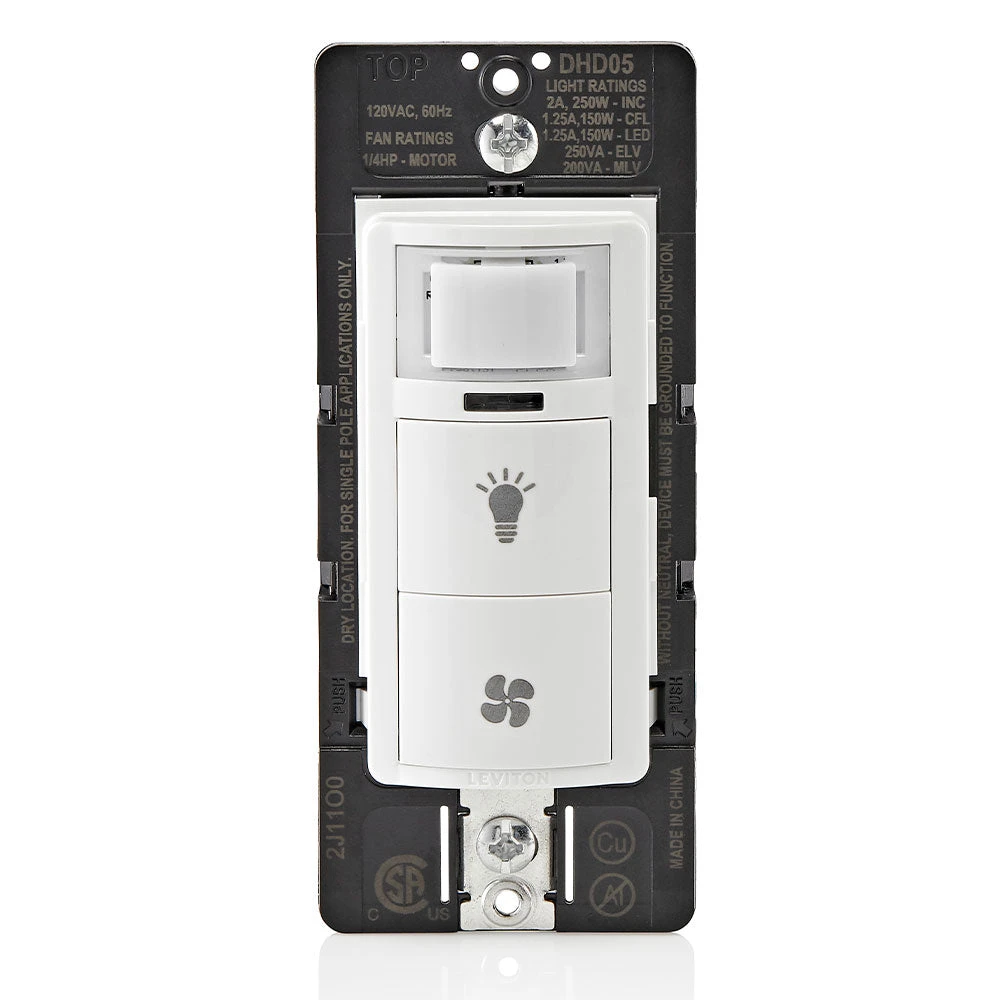

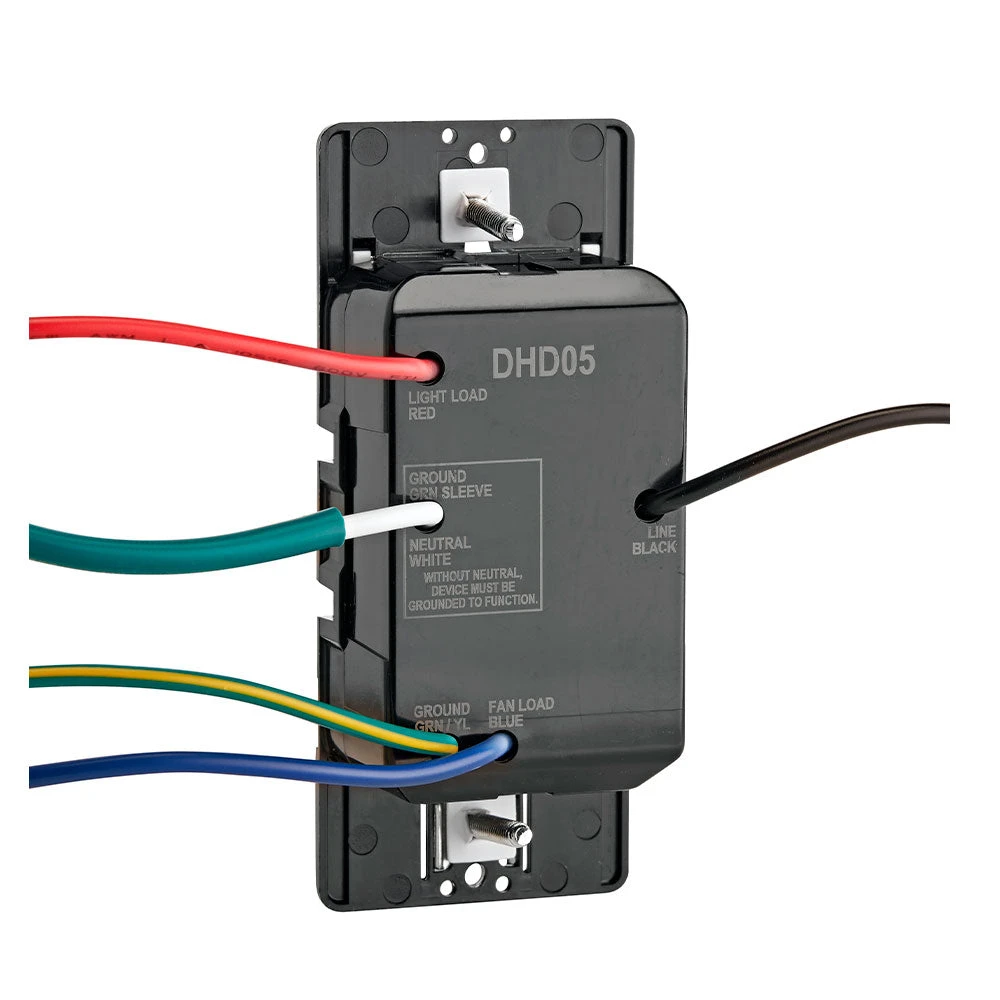

Load Rating: Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive
Mounting Type: Wall Switch
Neutral: Optional
Power Consumption: <0.5 Watts
Sensor Type: Humidity
Style Name: Decora
Switch: Relay
Switch Type: Single-Pole/Single Pole
Time Delay: 10, 20, 30 or 45 minutes
Voltage: 120 VAC
Wallplate: Not Included
Warranty: 5-Year Limited
Wiring: Ground or Neutral Required
ASHRAE 62.2: Yes
CALGREEN: Yes
California Title 24: Yes
Standards and Certifications: CSA
