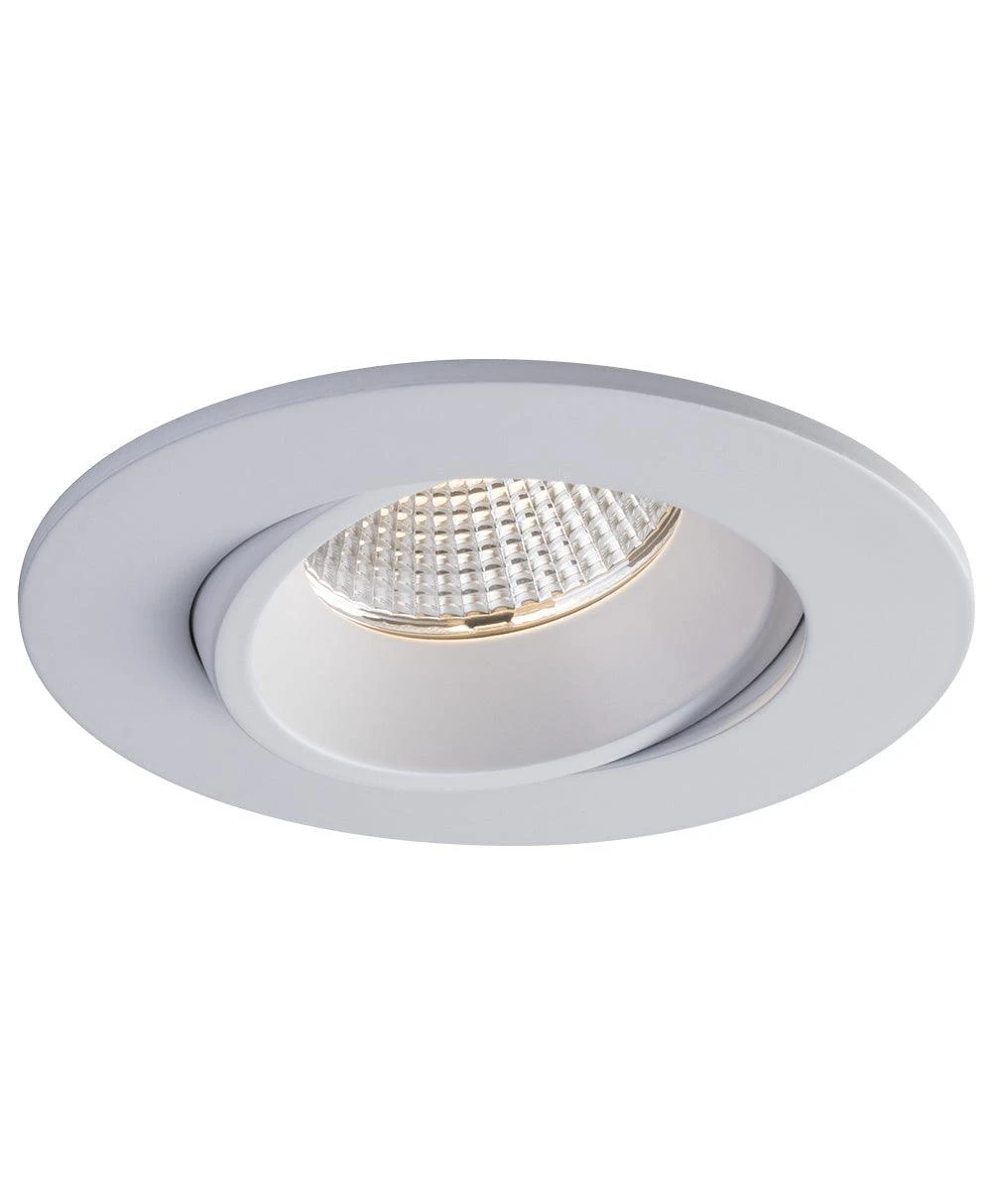

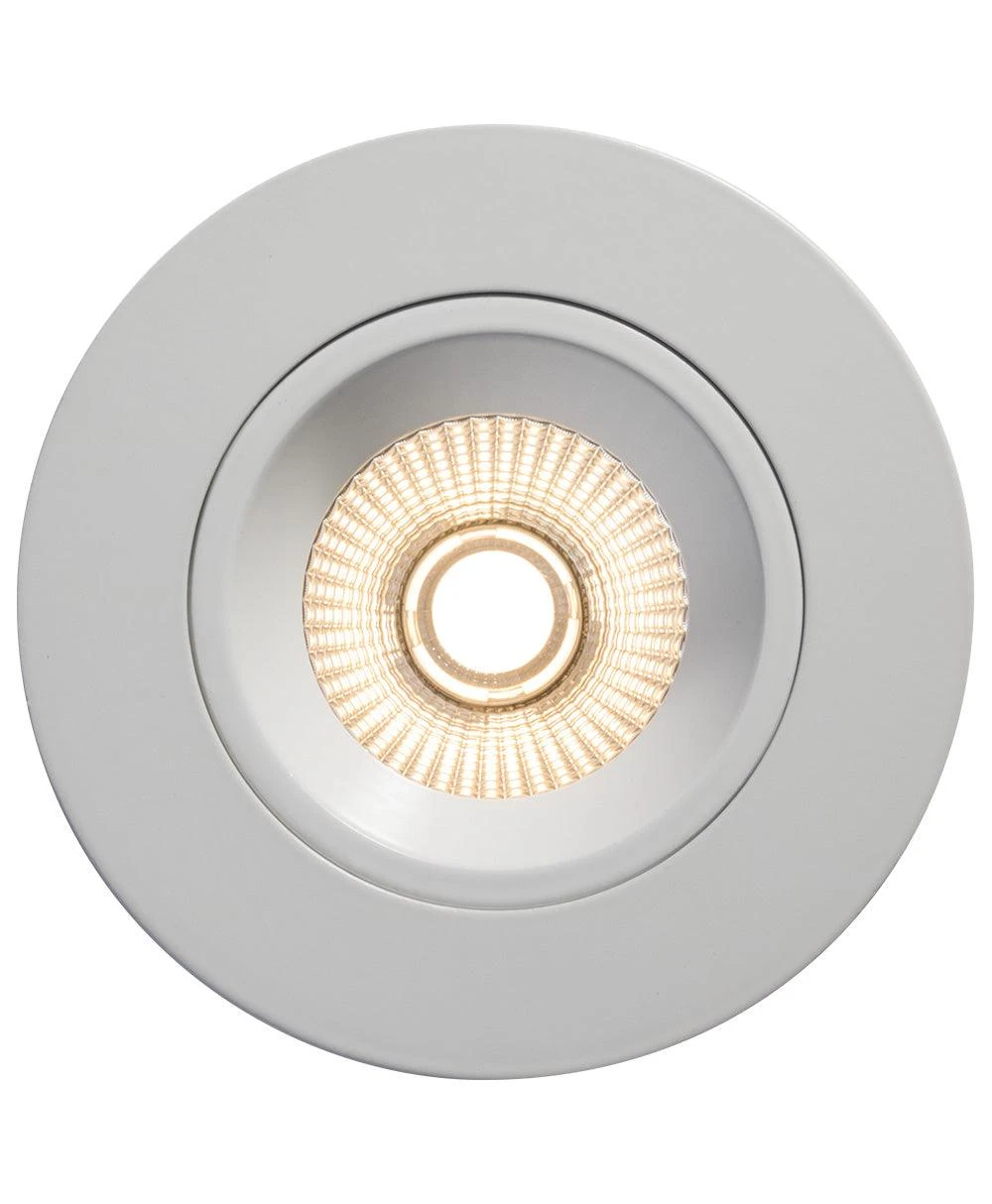

Liteline 3.5″ Luna LED White Round Regressed Gimbal Recessed Fixture, Dim To Warm, Model RA35-12RG-DTW90WH*

Description

The RA35-12RG is a 12 watt 3.5″ round regressed gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for damp locations.

Features

• Durable airtight aluminum body with adjustable gimbal. Includes anodized blue heat sink to provide maximum airflow for the LED light source.
• This general application light fixture features a 12 watts LED module that maintains uniform intensity producing up to 560 Lumens; with a typical CRI of 90.
• Color temperature dimming from 3000 K to 2000 K. This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers
• 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers (See specification sheet for listing of compatible dimmers)
• The fixture lens provides 38° beam spread.
• Includes two spring loaded clips to attached to any ceiling material
• Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 16″ cable from driver to fixture.
• Three “Quick connect” push-in terminals for fast and easy wiring.
• Operating temperature range from -20°C to 40°C (-4°F to 104°F)
• Suitable for wet locations and suitable for insulated ceiling applications. Approved for direct contact with insulation. Airtight

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 38°
CCT: 3000 K~2000 K
Certification: cETLus
Class II: Yes
Color: White
CRI: 90+
Dimming: Yes
Dimming Tech: Forward/reverse-phase – TRIAC/ELV
Hole Cut: Ø 35⁄8″ (92mm)
Input: 100-135V AC, 60Hz
Lumens: 700
Lumens per Watt: 64
Power Factor: >0.90
Projected Life: 70% @ 33,000 hrs
Warranty: Lifetime
Wattage: 12W
