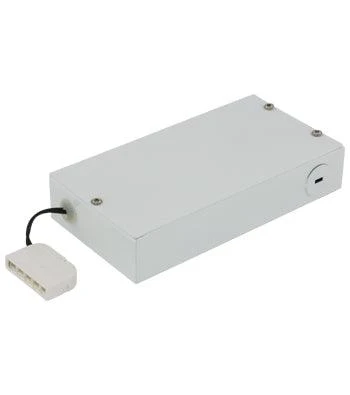

Liteline Non-Dimming Driver For Use With 12VDC LED Puck Lights, LED Strip And LED Tape, Model LED-HWB12-WH

Description

The LED-HWB12-WH is a 12 watt hardwire box for use with 12v DC LED puck lights, LED strip and tape for undercabinet and cove lighting requirements. It meets code for field hardware installation.

Features

• Provides a maximum power of 12 watts in a low voltage (12 VDC) output.
• Class 2 driver accommodates inputs of 100-240V with input frequency of 50/60Hz
• Suitable for indoor applications
• With a 5 port wiring hub with polarized connectors and 6-1/2′ lead, the hardwire box is capable of running up to 5 pucks (1.8W each) from attached port. Maximum distance between pucks is 52″
• Three 7/8″ knockouts on the outer box provides flexibility in positioning and in-line installation.
• The included quick-connect push-in terminals provides for easy installation – no splicing or wire nuts required.
• Compatible with all Liteline 12 volt DC LED lighting, including: UCP-LED series undercabinet pucks, LEDTPK single light LED tape series and LEDSTR LED strip series.
• Indoor use only
