NVent Nuheat Standard Mat, 120V, Dimension 6’x3′, Model F1809

Description

***Traditional hardwood is typically not recommended to be installed over an electric floor heating system because the repeated heating and cooling cycles may damage the wood.

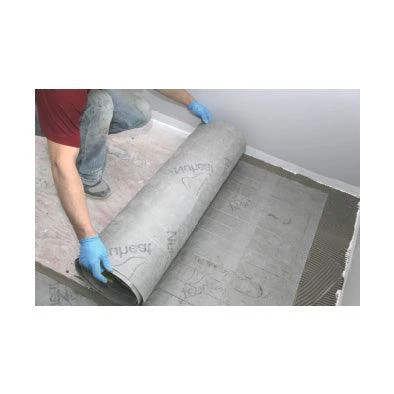

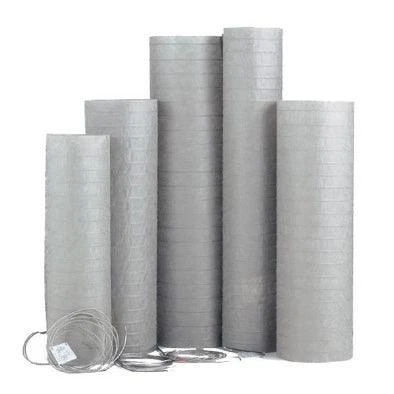

Standard Mats are the thinnest and easiest to install. Standard Mats are only 1/8” thick and eliminate the need to configure the heating wires during installation. Standard Mats come in various dimensions. Simply pick the size of the mat(s) that fits the desired heating area. Because the heating wire is embedded in the Standard Mat and does not need to be configured during installation, the heat coverage is guaranteed to be consistent throughout the desired heating area.

Benefits

• Easy to install
• Error-Free
• Reduces installation time
• Does not raise floor height
• Comprehensive selection of sizes to choose from

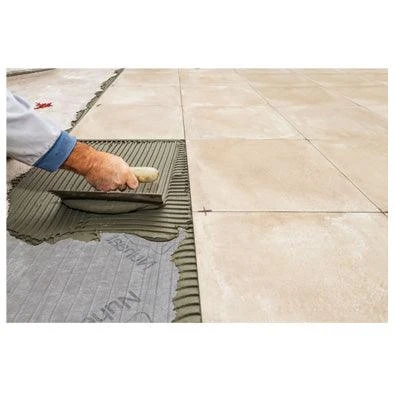

• Nuheat is approved for installation under tile, stone, marble, laminate, engineered wood, and luxury vinyl flooring

Technical Information

​Mat Dimension: 6’x3′
Amperage: 1.8 amps
Power Output: 216 watts
Material: Consist of a single-conductor tinned copper braided heating wire sandwiched in a pre-configured pattern between durable, two porous layers of fabric
​Operating Voltage: 120 V
​Maximum Continuous Exposure Temperature: 194°F (90°C)
​Heating Cable: Single wire with ground braid outer layer
​Cold Lead: 2-wire, 18 AWG plus ground braid layer; 10 ft (3m) length

Documents

Brochure
Installation Instructions
Mat Shower Installation Instructions
List of material needed to install
