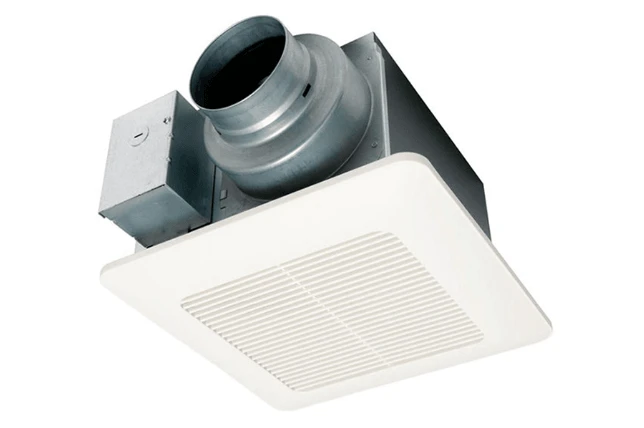

Panasonic WhisperCeiling DC Ventilation Fan, 50-80-110 CFM, Model FV-0511VQ1

Description

WhisperCeiling^® DC™ fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 CFM). Features a DC Motor with SmartFlow^® technology and a Flex-Z fast installation bracket and can be used to comply with the latest codes and standards.

ECM motor With SmartFlow Technology

WhisperCeiling DC is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the fan’s performance, even with a complicated duct run.

Pick-A-Flow Speed Technology

Built-in Pick-A-Flow speed selector provides the unique ability to select your required airflow (50-80-110 CFM) with the simple flip of a switch.

Features

• Precision spot ventilation fans ideal for use in the bathroom, laundry room, mud room, basement or garage
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow Speed Selector (50-80-110 CFM) combined with SmartFlow™ Technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
• Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
• Integrated 4″ or 6″ dual duct adapter enhances installation options
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing
• Built-In damper reduces back drafting and helps with blower door testing

Technical Information

Product family name: WhisperCeiling
Air volume exhaust (CFM): 50 CFM @ 0.1″SP, 53 CFM @ 0.25″ | 80 CFM @ 0.1″SP, 83 CFM @ 0.25″SP | 110 CFM @ 0.1″SP, 110 CFM @ 0.25″SP
Noise (sones): <0.3 @ 50 CFM @ 0.1″ SP, 0.4 @ 50 CFM @ 0.25″ SP | <0.3 @ 80 CFM @ 0.1″ SP, 0.6 @ 80 CFM @ 0.25″ SP | <0.3 @ 110 CFM @ 0.1″ SP, 0.9 @ 110 CFM @ 0.25″SP
Energy efficiency (CFM/Watt): 12.5 CFM/W @ 50 CFM | 13.6 CFM/W @ 80 CFM | 10.6 CFM/W @ 110 CFM
Motor type (AC/DC): DC
Duct diameter: 4″ (102 mm) / 6″ (152 mm)
Lighted: No
Motion sensor: No
Moisture sensor/condensation: No
Multi-speed with time delay: No
Night light: No
Installation: Ceiling
Radiation damper available: Yes
Housing dimensions (L x W x H): 10-1/4″ x 10-1/4″ x 7-3/8″ (260 x 260 x 187 mm)
Grille size – Square inches (mm): 13″ (330 mm)
ENERGY STAR®, ASHRAE 62.2, LEED: Yes
cUL listed for tub/shower enclosure: Yes
