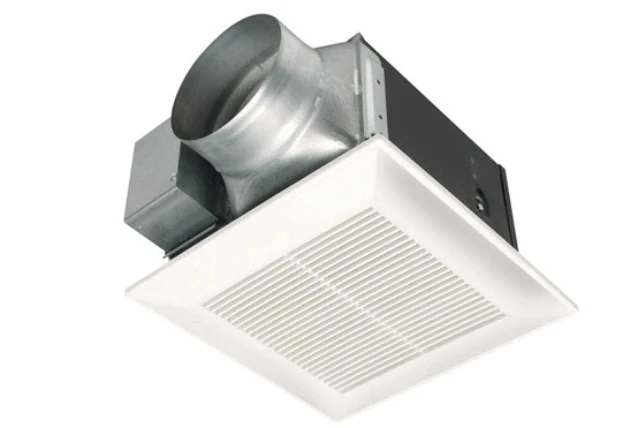

Panasonic WhisperCeiling Spot Ventilation Fan, 390 CFM, Model FV-40VQ4

Description

WhisperCeiling™ 390 CFM large volume exhaust fans are ideal for light commercial applications. The workhorse of the Panasonic line, they are time-tested and customer approved for their quiet, yet powerful consistency. Rated for continuous use, WhisperCeiling vent fans are a simple way to incorporate an energy efficient ventilation strategy.



Long life means reduced costs.

When you have a household or business to run, you don’t want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation Flexibility

WhisperCeiling large volume fans feature a 6 in. duct adapter and fit in 2×8 construction. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.



Features

• Ideal for light commercial applications
• It incorporates a 6 in. duct adapter
• Can be used to comply with the latest codes and standards

Technical Information

Product family name: WhisperCeiling
Air volume exhaust (CFM): 390 CFM @ 0.1″ SP | 356 CFM @ 0.25″ SP
Noise (sones): 3.0 @ 390 CFM, 0.1″SP | 3.0 @ 356 CFM,0.25″SP
Energy efficiency (CFM/Watt): 3.5 CFM/WATT @ 390 CFM, 0.1″SP | 3.3 CFM/WATT @ 356 CFM, 0.25″ SP
Motor type (AC/DC): DC
Duct diameter: 6″ (152 mm)
Lighted: No
Motion sensor: No
Moisture sensor/condensation: No
Multi-speed with time delay: No
Night light: No
Installation: Ceiling
Radiation damper available: Yes
Housing dimensions (L x W x H): 14 3/4″ X 14 3/4″ X 9 9/32″ (375 x 375 x 236 mm)
Grille size – Square inches (mm): 17 11/16″ (450 mm)
ENERGY STAR®, ASHRAE 62.2, LEED: No
cUL listed for tub/shower enclosure: Yes
