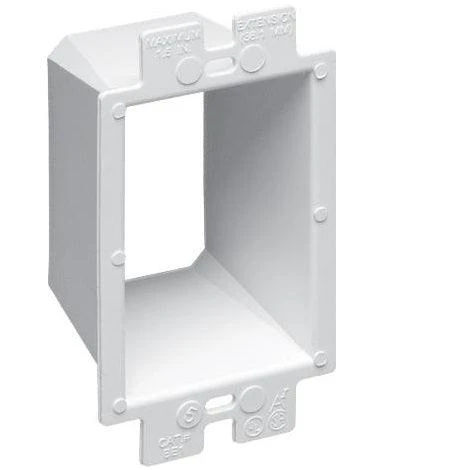

Arlington Single Gang Box Extender Without Screws, Model BE1

Description

Arlington’s non-conductive box extenders, extend set back metal or non-metallic electrical boxes up to 1-1/2 inches, the easy way. They work with any single gang device and most steel and non-metallic outlet boxes, providing a level, fully supported wiring device that’s flush with the wall surface.

***Screws are not included, you will need mechanical screws 6-32 long enough for your application***

Benefits

• Prevents steel boxes from arcing and shorting by creating a barrier between the box and device screws
• BE1 single gang box extenders are trimmable for use in multiple boxes
• 2-hour fire rating
• Complies with NEC 2017, article 314.20 for set back boxes
• Can be installed without removing device wires
• Some bulkier devices may not fit. (GFCI Receptacle, USB Charger receptacles, Some Dimmers)

Technical Information

Model: BE1
Height: 4.188″
Width: 2.313″
Colour: White
Material: Plastic
Trade Size: 1-Gang

Documents

Brochure
Instruction sheet
BE1 Line Drawing
