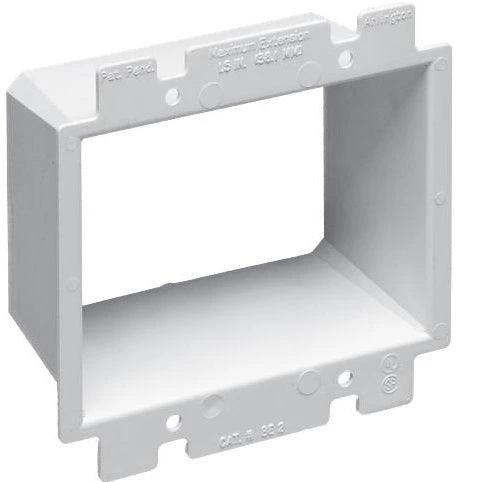

Arlington Two Gang Box Extender Without Screws, Model BE2

Description

Arlington non-conductive box extenders, extend set back metal or non-metallic electrical boxes up to 1-1/2 inches, the easy way. They work with any single gang device and most steel and non-metallic outlet boxes, providing a level, fully supported wiring device that’s flush with the wall surface.

***Screws are not included, you will need mechanical screws 6-32 long enough for your application***

Benefits

• Prevents steel boxes from arcing and shorting by creating a barrier between the box and device screws
• Complies with NEC 2017, article 314.20 for set back boxes
• Functions with all standard devices, switches, and GFCIs
• 2-hour fire rating
• Manufactured from 105°C continuous use 94V0 rated flame retardant plastic for safer installations
• Some bulkier devices may not fit. (GFCI Receptacle, USB Charger receptacles, Some Dimmers)

Technical Information

Model: BE2
Height: 4.188″
Width: 4.125″
Colour: White
Material: Plastic
Trade Size: 2-Gang

Documents

Brochure
Instruction sheet
BE2 Line Drawing
