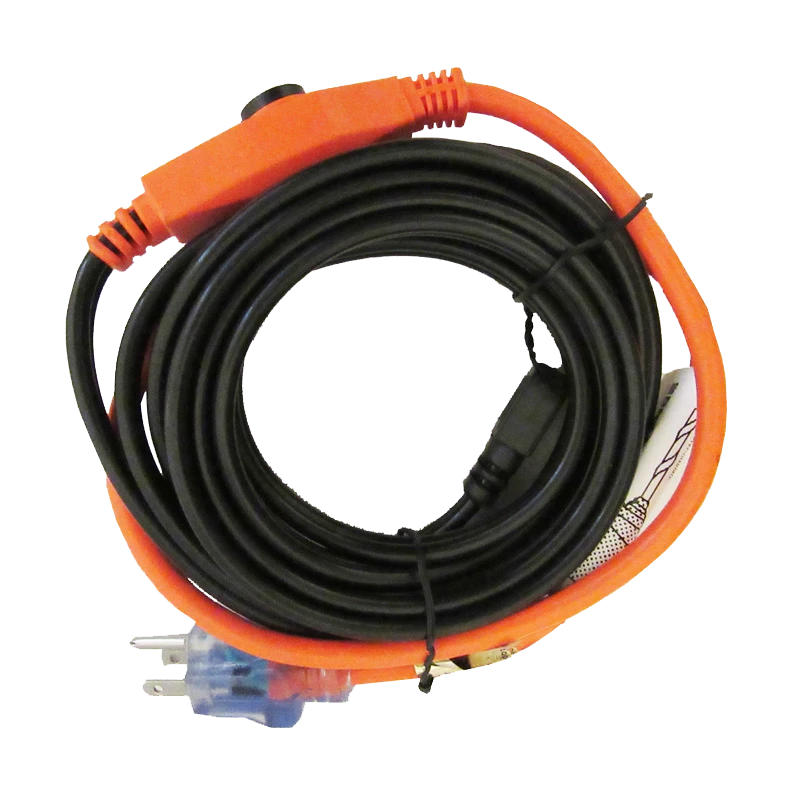

Britech Therma-Pipe Series Resistance Plug-In Heating Cable For Pipes, 105W 120V 15 Ft. Model BFPC1-1A015*

Description

The Therma-Pipe series resistance plug-in heating cable is an economical alternative to self-regulating cables for pipe tracing applications. However, since this is not a self-regulating cable, it can not overlap at any point.
It is factory assembled with a 3-prong plug so each cable simply connects to any grounded 120V outlet.

Make sure you look at the Product Sheet to choose the correct length of cable needed for your installation!

Features

• 7 Watts per foot.
• For outdoor applications only.
• Built-in bi-metal thermostat energizes the cable when the temperature falls below 4 °C (40 °F).
• For metallic and non-metallic pipes up to 1.5 in (3.8 cm) in diameter.
• Grounded 3-pronged plug with indicator light to show when the cable is on.

Technical Information

Length: 15 FT
Watts: 105 W
Amp: 0.88 A
Voltage: 120 V
Cable Type: Series Resistance
Usage: WS: Wet Test and Weather resistance
Min. Bending Radius: 0.3″ (8mm)
Installation Temperature: Min. Installation Temperature: 0°C (32°F)
Operating Temperature: Max. Continuous Operating temperature: 25°C (77°F)
