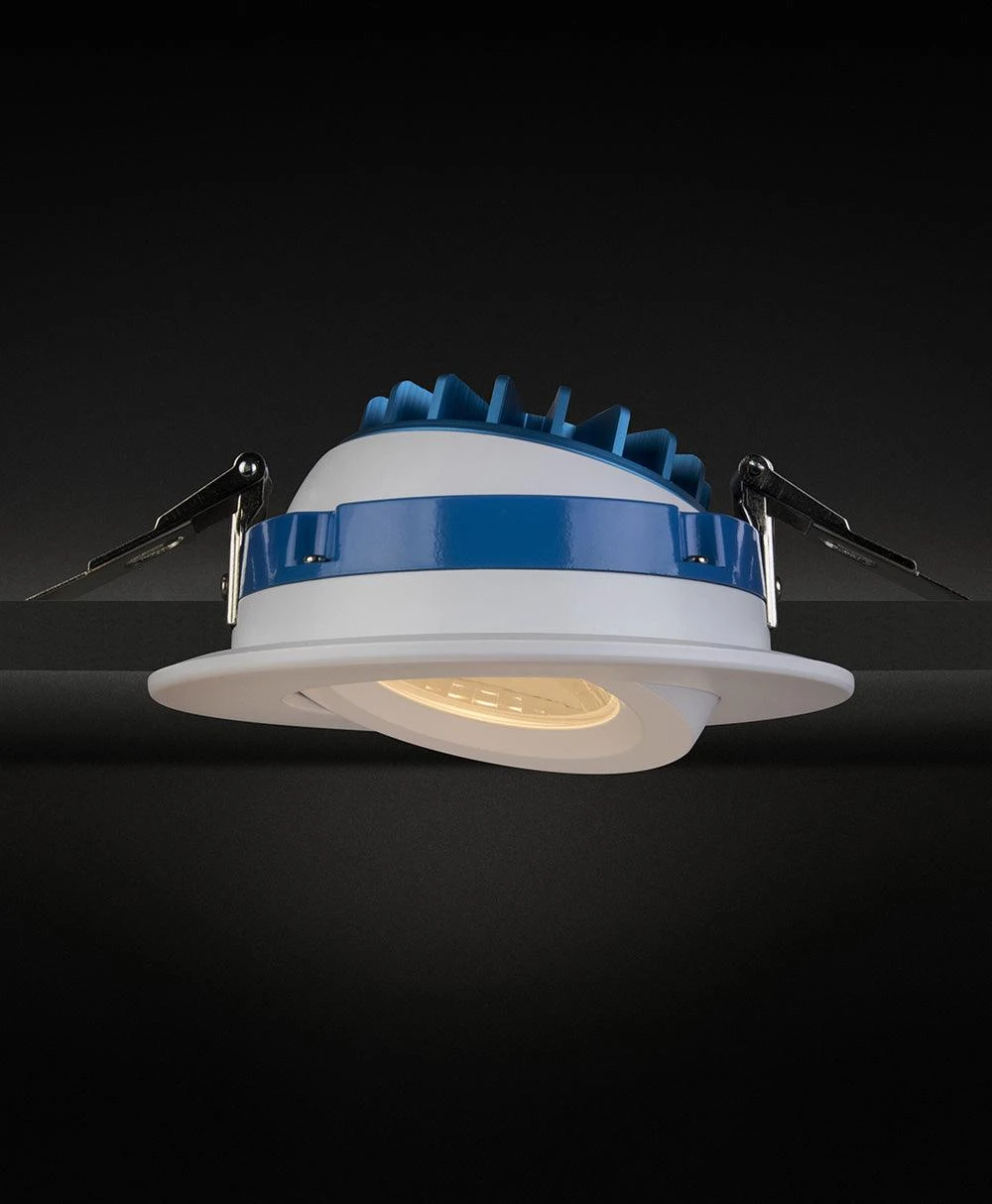

Liteline 4″ Luna White Gimbal Recessed Fixture, Soft White (3000k), Model RA4-12G-30K-90WH

Description

The RA4-12 is a 12 watt 4″ round gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.

Features

• Durable airtight aluminum body with adjustable gimbal. Includes Anodized blue heat sink to provide maximum airflow for the LED light source
• This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 1015 lumens, with a typical CRI of 90.
• 100%-10% dimming capability. Compatible with industry standard TRIAC/ELV dimmers.
• The lens provides 40° beam spread
• Includes two spring loaded clips to attached to any ceiling material
• Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18″ FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings
• Three “quick connect” push-in terminals for fast and easy wiring
• Operating temperature of -20°C to 40°C (-4°F to 104°F)
• Suitable for wet locations
• Approved for direct contact with insulation

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 40°
CCT: 3000K
Certification: cETLus
Class II: Yes
Color:White
CRI: 90
Dimming: Yes
Dimming Tech: Forward/reverse-phase, TRIAC/ELV
Energy Star: Yes
Hole Cut: Ø 4¼ ” (108mm)
Input: 100-135V AC, 60Hz
Lumens: 1015
Lumens per Watt: 83
Power Factor: 0.95
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 12W

Document

Brochure

Installation

Specification Sheet

Compatible Dimmers
