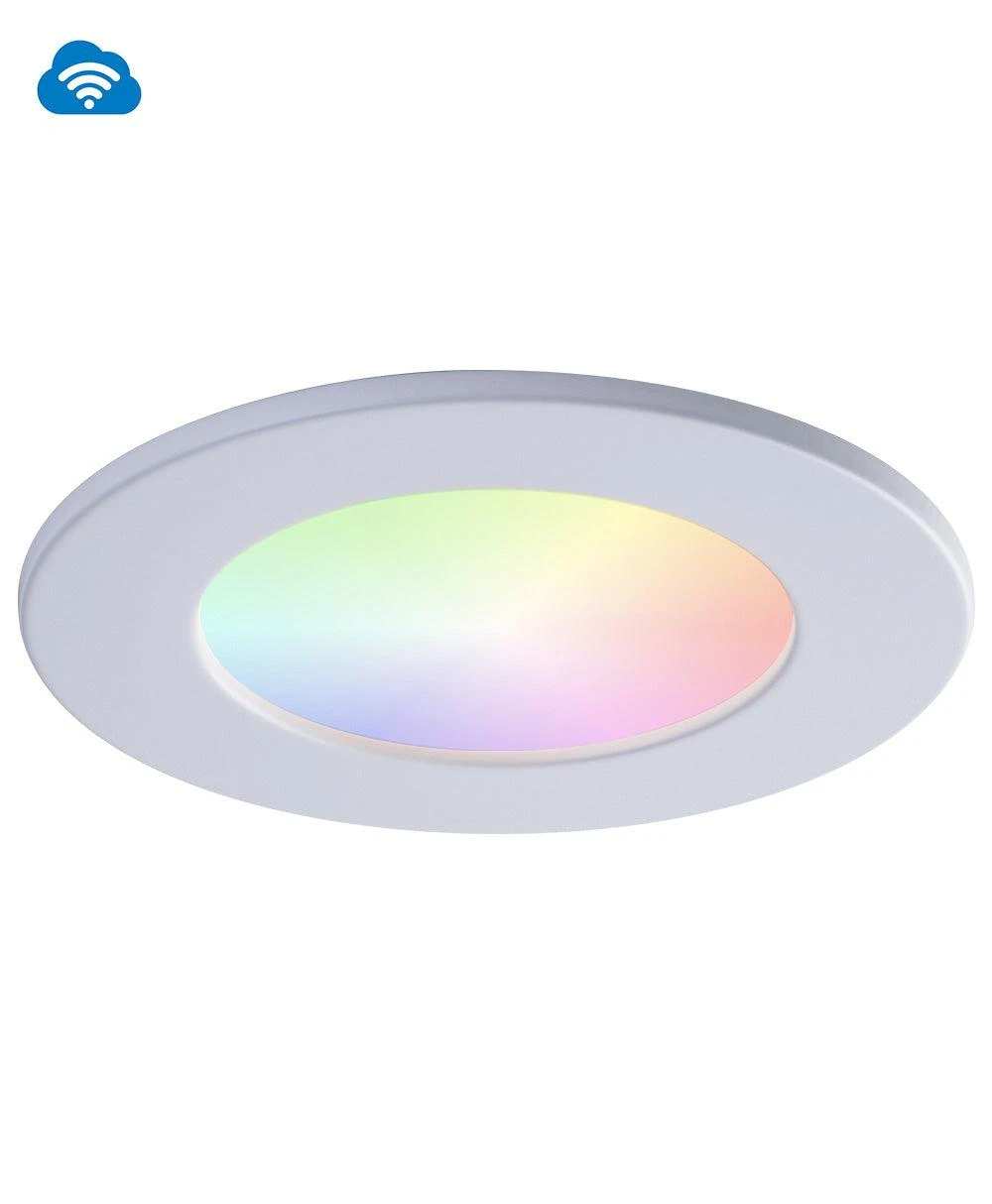

Liteline 4″ Round SlimLED Smart OnCloud Recessed Fixtures, White And Black Trim, Model SLM4-RGBTW-WZ-WHBK

Description

Full color and white tuning is now available on the classic SlimLED style. Plus, trims can be magnetically interchanged on site after installation to match your style. If you’re updating a room, you can also get the SlimLED OnCloud in a 4-pack kit with a Room Controller so you can turn the lights on/off, dim, change the white, or select through the 4-favorite modes all from the wall.

Features

• Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare.
• Includes silicone gasket for wet location applications

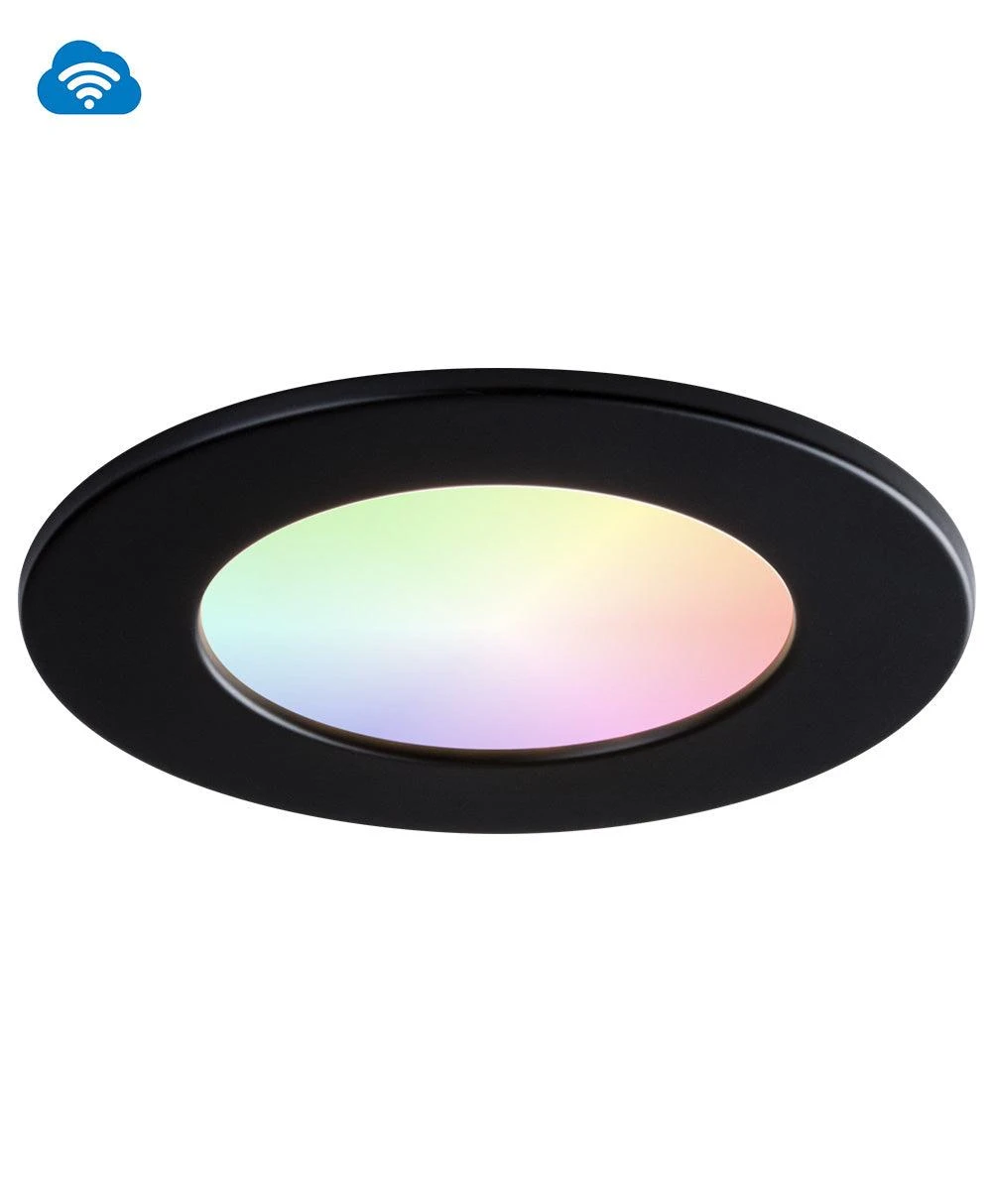

• Includes white and black interchangeable magnetic trims
• This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 800 lumens, with a typical CRI of 90.
• RGB and tunable White (2700 K to 5000 K)
• 100%-10% Wi-Fi dimming capability. Dimming controlled via the WiZ App and Room Controller
• Lens provides 110° beam spread
• Includes two spring loaded clips to attached to any ceiling material
• Extruded aluminum hardwire box with 300mA Wi-Fi dimmable LED driver with 100-135V AC input.
• Includes an 18″ wire with 6-pin DC connector between driver and fixture
• Can be controlled via the WiZ App (Works with iOS and Android) from anywhere. Voice control can also be achieved by integrating the app with most smart speakers. Works with Google Assistant, Siri, Alexa and IFTTT.
• “Quick connect” push-in terminals in hardwire box for fast and easy wiring
• Minimum starting temperature of -40°C (-40°F)
• Suitable for wet locations, indoor or outdoor
• Approved for direct contact with insulation

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings / Indoor / Outdoor
Beam Angle: 110°
CCT: RGB + Tunable White (2700 K – 5000 K)
Certification: cETLus
Class II: Yes
Color: White and Black trims included
CRI: 90
Dimming: Yes
Dimming Tech: Wi-Fi Dimming (via WiZ App)
Hole Cut: Ø 4¼ ” (108mm)
Input: 100-135V AC, 60Hz
Lumens: up to 800
Lumens per Watt: Up to 76
Power Factor: >0.9
Projected Life: 70% @ 50,000 hrs
Warranty: 3-Year
Wattage: 12W
