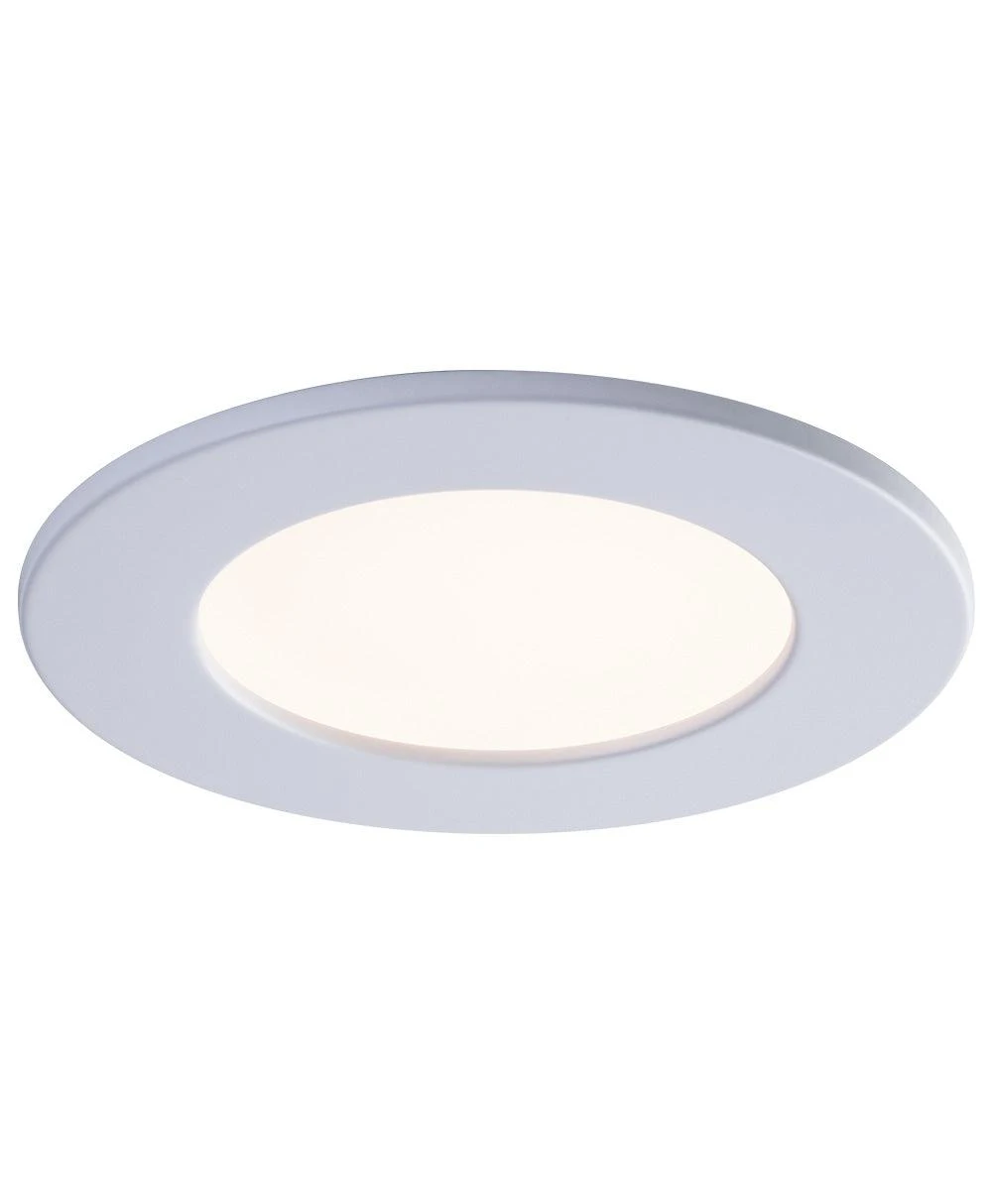

Liteline 4″ SlimLED Plus, Dim To Warm, White Trim, Model SLM4-12W-DTW-WH

Description

A slim profile dim-to-warm downlight. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design with interchangeable color trims. Suitable for wet locations.

Features

• Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare.
• Includes silicone gasket for wet location applications
• Includes Black and White interchangeable magnetic trims
• This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 620 lumens, with a typical CRI of 90.
• Color temperature dimming from 3000K to 2000K
• 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers
• Lens provides 110° beam spread
• Includes two spring loaded clips to attached to any cailing material. The slim profile allows to be mounted under joists or duct work
• Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18″ plenum rated FT6 wire with DC 2.1 connector from driver to fixture
• “Quick connect” push-in terminals for fast and easy wiring
• Operating Temperature from -30°C to 40°C (-22°F to 104°F)
• Suitable for wet locations
• Suitable for insulated ceiling applications

Technical Information

Application: Ceiling Recessed Mount
Approved Location: Wet / Insulated Ceilings / Indoor / Outdoor
Beam Angle: 110°
CCT: 3000 K ~ 2000 K
Certification: cETLus
Color: White
CRI: 90
Dimming: Yes
Dimming Tech: Forward/Reverse phase / TRIAC/ELV
Hole Cut: Ø 4¼ ” (108mm)
Input: 100-135V AC, 60Hz
LM79: Yes
LM80: Yes
Lumens: up to 620
Lumens per Watt: Up to 58
Power Factor: 0.99
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 12W
