Liteline 4″ White Round LED Slim Profile Recessed Downlight, Cool White (4000K), Model SLM4-40-WH

Description

The SlimLED is a high performance, easy to install down light. No recessed fixture required. At half of an inch thin, it will fit almost anywhere you need an LED general light source. With it’s slim design, it is the perfect choice light source when you have joists or duct work in the way. Airtight, and rated for direct contact with insulation, this luminaire is an excellent choice for soffits, drop ceilings, or any general purpose lighting applications.

Features

• Durable airtight aluminum body with UV stable paint and white PMMA diffuser lens for low glare.
• Includes silicone gasket for wet location applications
• The general application light fixture features a 9 watt LED module that maintains uniform intensity producing up to 660 lumens, with a typical CRI of 90.
• 100%-10% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers
• Fixture lens provides 120° beam spread

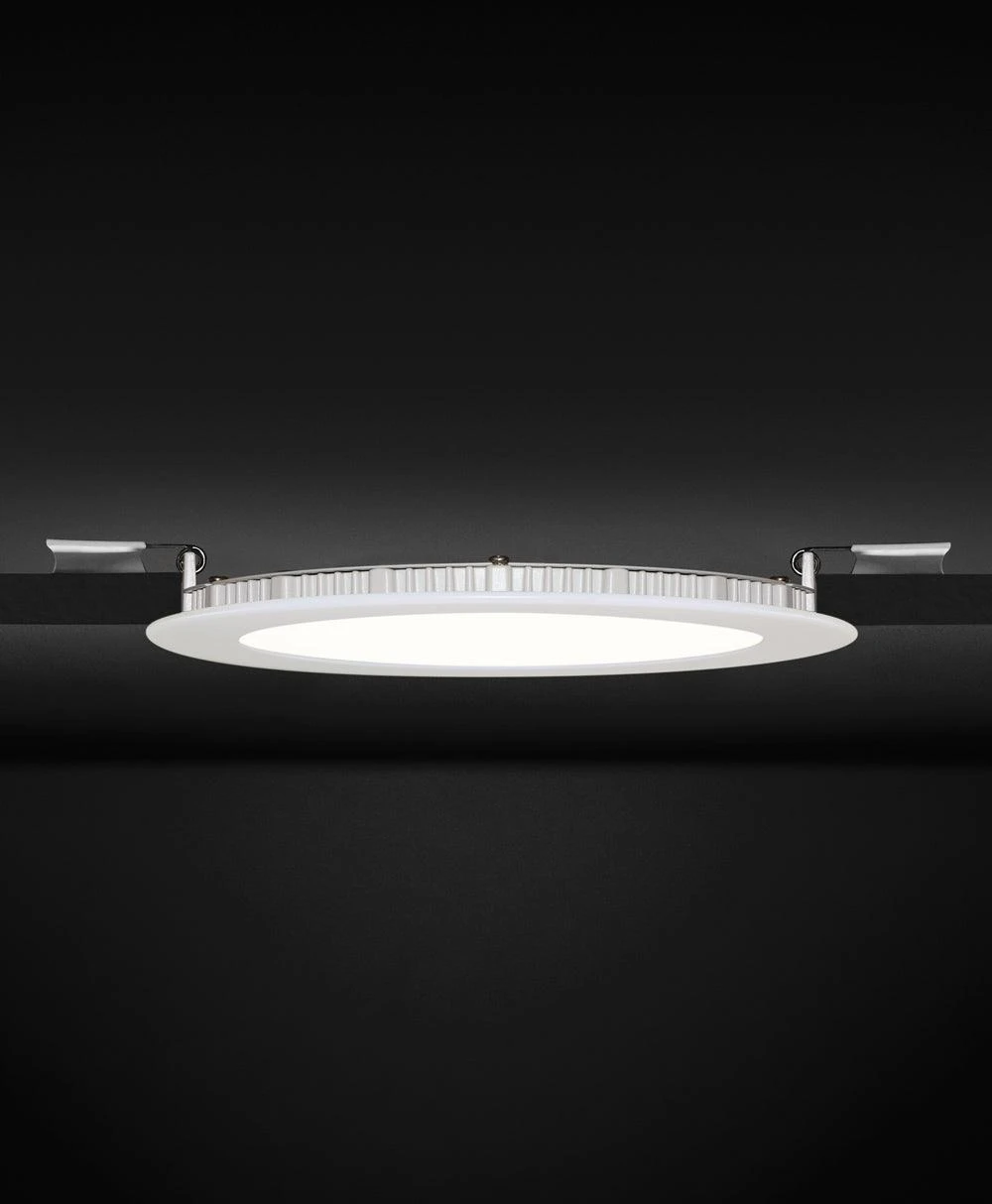

• Includes two spring loaded clips to attached to an ceiling material. The slim profile allows to be mounted under joists or duct work

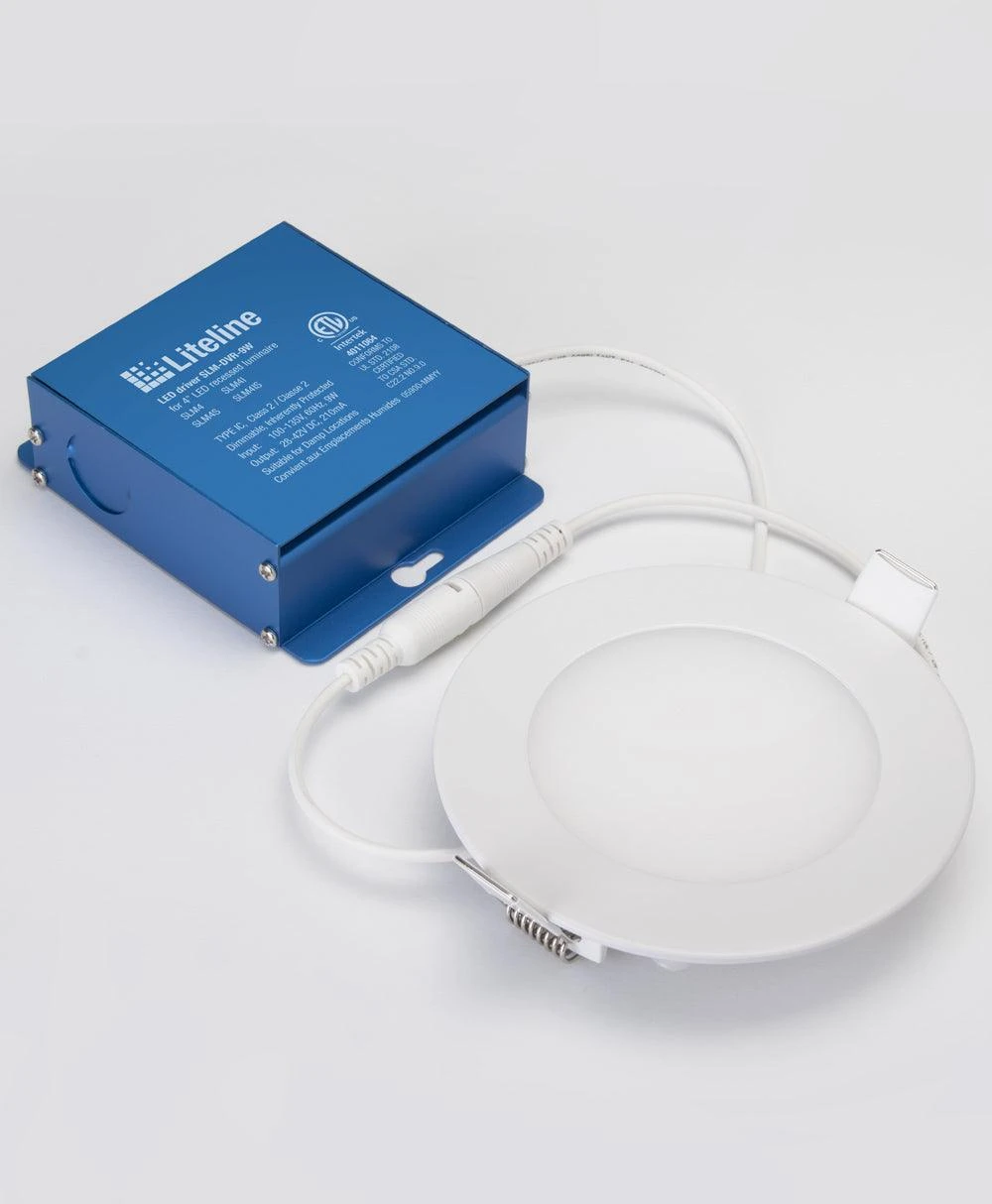

• Extruded aluminum hardwire box with 210mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18″ cable from driver to fixture
• Three “quick-connect” push-in terminals for fast and easy wiring
• Operating temperature from -20°C to 40°C (-4°F to 104°F)
• Suitable for wet locations
• Suitable for insulated ceiling applications

Technical Information

Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 120°
CCT: 4000 K
Certification: cETLus
Class II: Yes
Color: White
CRI: 90
Dimming: Yes
Dimming Tech: TRIAC/ELV
Energy Star: Yes
Hole Cut: Ø 43⁄16″ (106mm)
Input: 100-135V AC, 60Hz, 0.09A
LM79: Yes
LM80: Yes
Lumens: Up to 660
Lumens per Watt: Up to 73
Power Factor: >0.9
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 9W

Document

Brochure

Installation

Specification Sheet

Compatible Dimmers
