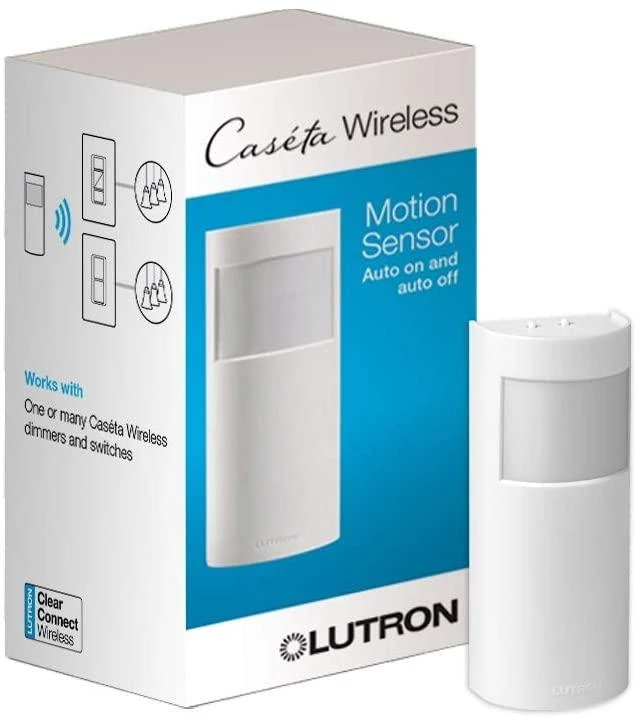

Lutron Caseta Wireless Motion Sensor (Vacancy & Occupancy)

Description

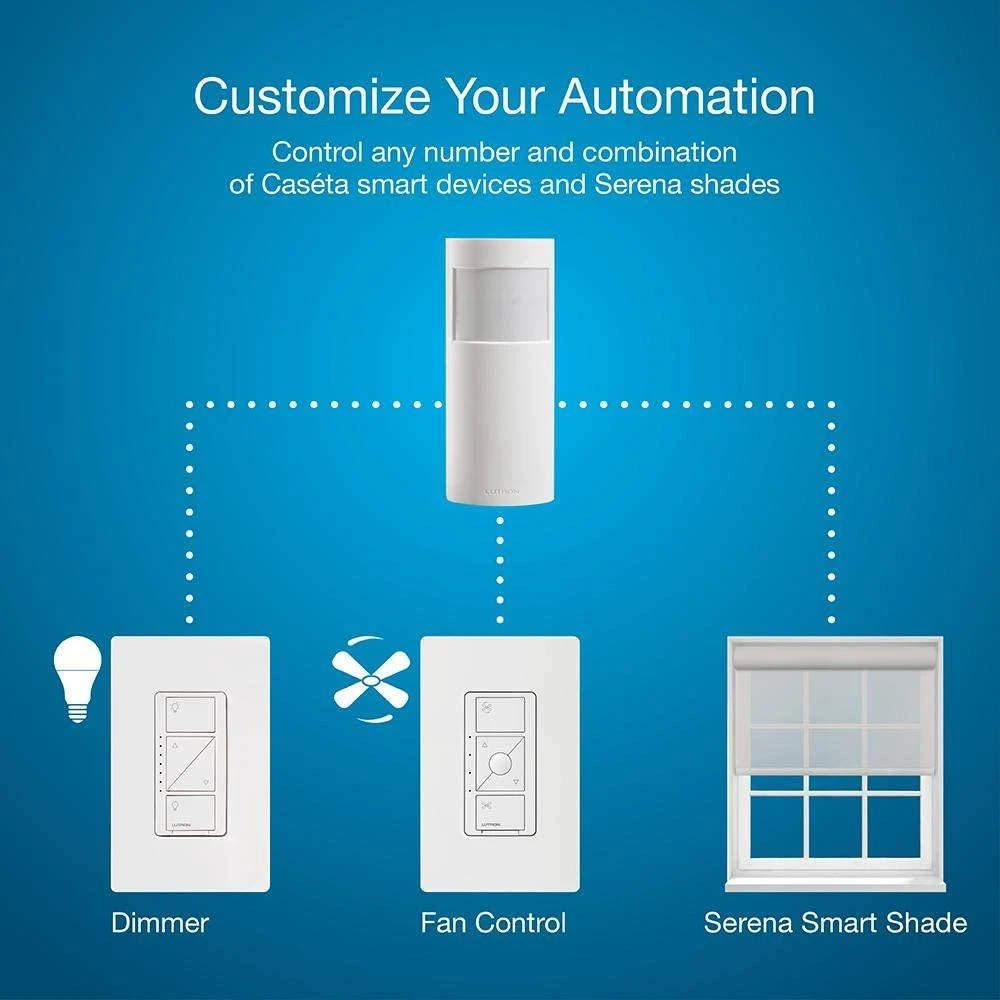

Add hands-free control to the lists of Caseta lighting control options. Lutrons’ Occupancy/Vacancy motion sensor is a wireless, battery-operated, passive infrared (PIR) sensor that automatically controls lights via RF communication to compatible dimming or switching devices. These sensors detect the heat from people moving within an area to determine when the space is occupied. Combine both convenience and exceptional energy savings along with ease of installation with Lutron Caseta motion sensors.

Benefits

• Occupancy/Vacancy sensor (Auto-on, Auto-off)
• Infrared motion detection with exclusive Lutron XCT Technology detects minor motion
• Timeout, Activity, and Auto-On settings available
• Easy Installation and accessible test buttons make setup easy
• Lens illuminates during test mode to verify ideal locations

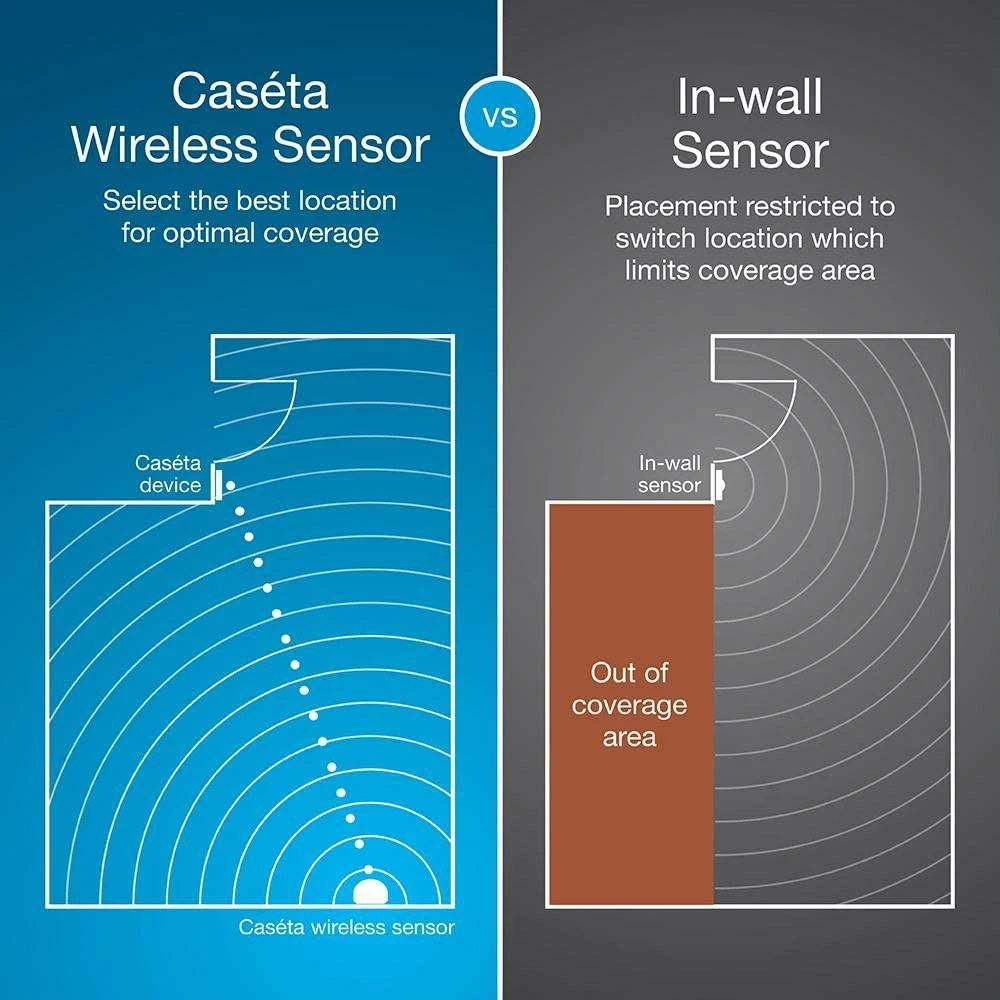

• Multiple sensors can be added for extended coverage
• 180° field view
• For indoor use only. Perfect for bathrooms, laundry rooms, hallways, garages, and more – no wires required.
• 10-year battery life
• For use with Lutron Caseta products only

Technical Information

Specification sheet
Specification sheet FR
Regulatory Approvals: cULusR listed, FCC certified, IC certified, IFT certified, Meets CA (U.S.A.) Energy Commission Title 24 requirements
Power/Performance: Operating voltage: 3 V-
Operating current: 14 μA nominal
Requires one CR 123 lithium battery
Battery life: 10-year battery-life design
Non-volatile memory (saved changes are stored during power loss)
Temperature: 32 °F to 104 °F (0 °C to 40 °C)
Relative humidity: less than 90% non-condensing
RF Range: Distance between local load controls and sensor should not exceed 60 ft (18 m) line-of-sight or 30 ft (9 m) through walls
180° field of view: Minor motion = 15 x 2 x 35 = 1050 ft2 (97.5 m2), Major motion = 20 x 2 x 45 = 1800 ft2 (167.2 m2)
