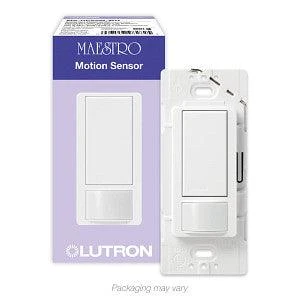

Lutron Maestro Occupancy Sensor Switch, Model MS-OPS5M-WH

Description

The Lutron Maestro occupancy sensor switch combines a Maestro switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensor switch will adjust the load accordingly.

They’re ideal for rooms where lights are accidentally left on, such as an office, or rooms that you often enter with your hands full, such as a laundry room or supply closet.

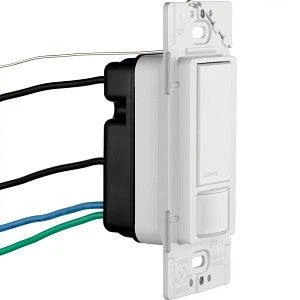

****REQUIRES GROUND WIRE****

**Wall plate not included**

Features

• Passive infrared sensors with exclusive Lutron XCT Technology* for fine motion detection
• 180° sensor field-of-view
• Up to 30ft x 30ft (9m x 9m) [900 ft² (81m²)] major motion coverage and 20ft x 20ft (6m x 6m) [400ft² (36m²)] minor motion coverage
• Occupancy version can be set to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
• Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
• Load types: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
• With the ambient light detection, lights turn on only if natural light in room is low
• Can be use in 3-Way locations

*Advanced sensing technology for fine motion detection ensures that the lights stay on while the room is occupied, and that the sensor does not turn on falsely when there is no occupancy in the room.

Technical Information

Colour: White
Voltage: 120V
Load capacity:

600W incandescent, halogene, ELV.
450W MLV
360W LED/CFL
5A Ballasts
3A (1/10HP) Fan
3A Combined fan and light load

Mounting Type: Wall Mount
Switch Style: Push Button

Document

Specification Sheet

User Manual
