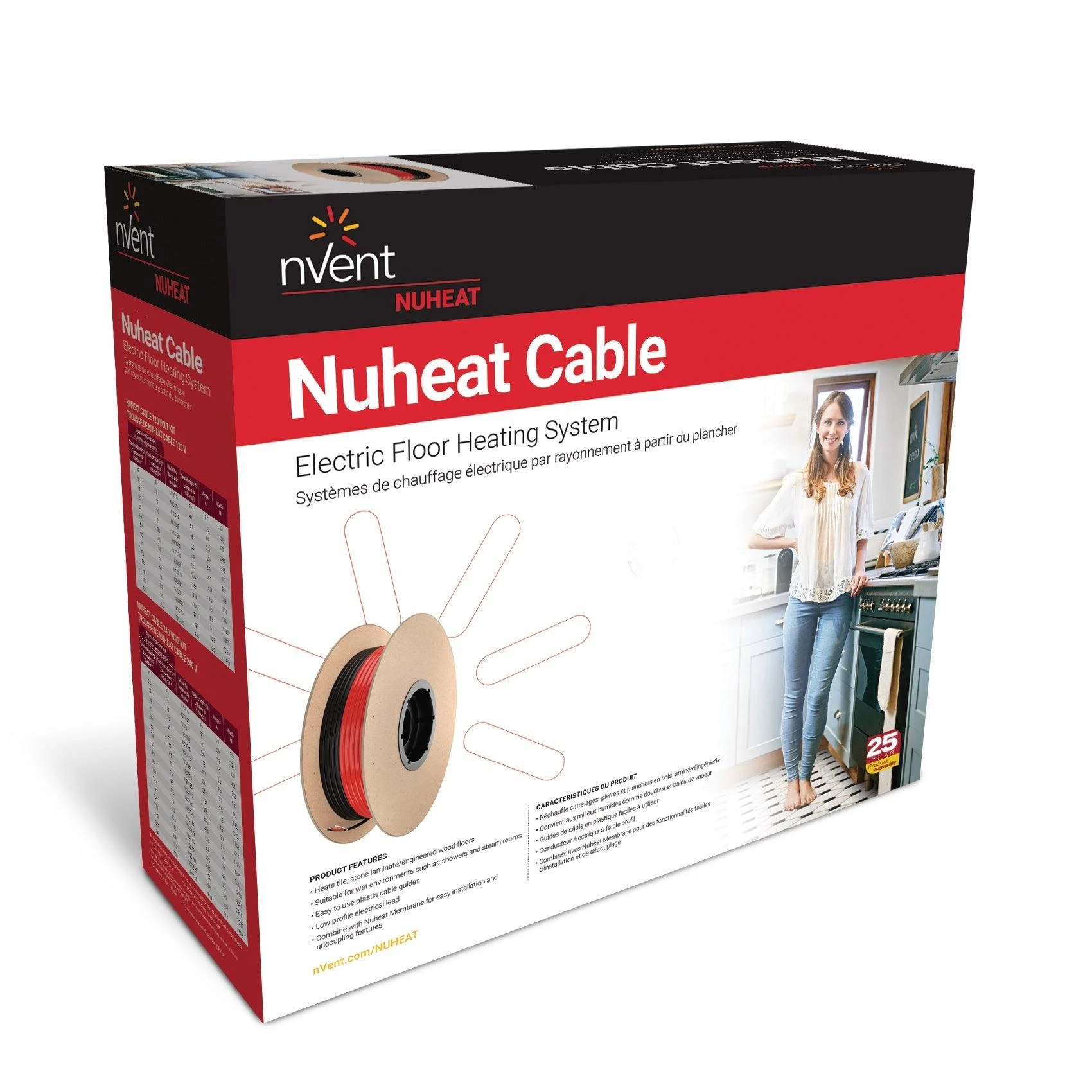

NVent Nuheat Cable Kits, 240V, 135 Sq. Ft. Coverage, Model N2C135*

Description

nVent Nuheat Cable is an easy-to-install electric floor heating system that combines installation versatility with advanced new technology. Choose the cable kit that is best suited for the size of the room/area and configure it on-site to provide floor heat in the desired areas of the room.

Benefits

• Heats tile, stone, and laminate/engineered wood floors
• On-site flexibility
• Flexible wire spacing and heat output

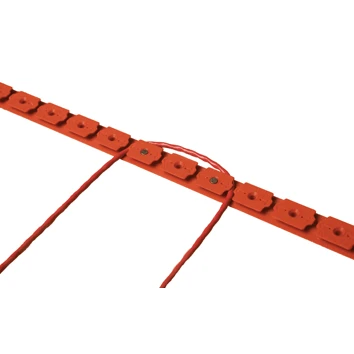

• Compatible with nVent Nuheat Membrane
• Comprehensive selection of sizes to choose from
• Suitable for wet environments such as showers and steam rooms
• Redesigned, thinner cold-lead and factory splice
• New mid-point marker on the heating cable

Technical Information

Operating Voltage: 240 V
Length: 529′
Amperage: 6.8 amps
Surface covering: 135 sq. ft.
Power Output: 12 – 15 watts per square foot
Maximum Ambient Temperature: 194°F (90°C)
Material: Two single conductor Tefzel-coated resistance wires covered by a tin-plated copper braid and then coated with a durable copolymer (PVC) outer jacket
