NVent Nuheat Membrane – Sheets – 10.6 Sq. Ft. X 25 Sheets – NUMEM250

Description

***Traditional hardwood is typically not recommended to be installed over an electric floor heating system because the repeated heating and cooling cycles may damage the wood.

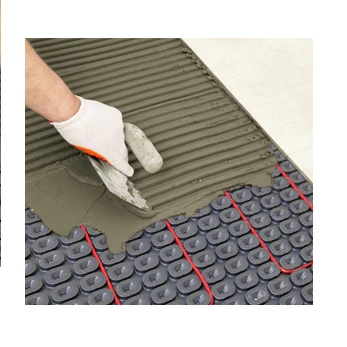

nVent NUHEAT Membrane is a tile underlayment that can be installed over the entire subfloor for uncoupling, crack isolation and waterproofing purposes and can eliminate the need for a second layer of plywood or concrete backer board in most tile installations.

Benefits

• Reduces the risk of tile cracks due to subfloor movement
• Acts as tile underlayment
• Compatible with nVent cable floor heating system
• Flexible wire spacing and heat output
• Nuheat is approved for installation under tile, stone, marble, laminate, engineered wood, and luxury vinyl flooring
• Even floor heat distribution
• No need for a second layer of plywood or concrete backer boards
• Saves installation time and material costs
• List of material needed to install

Technical Information

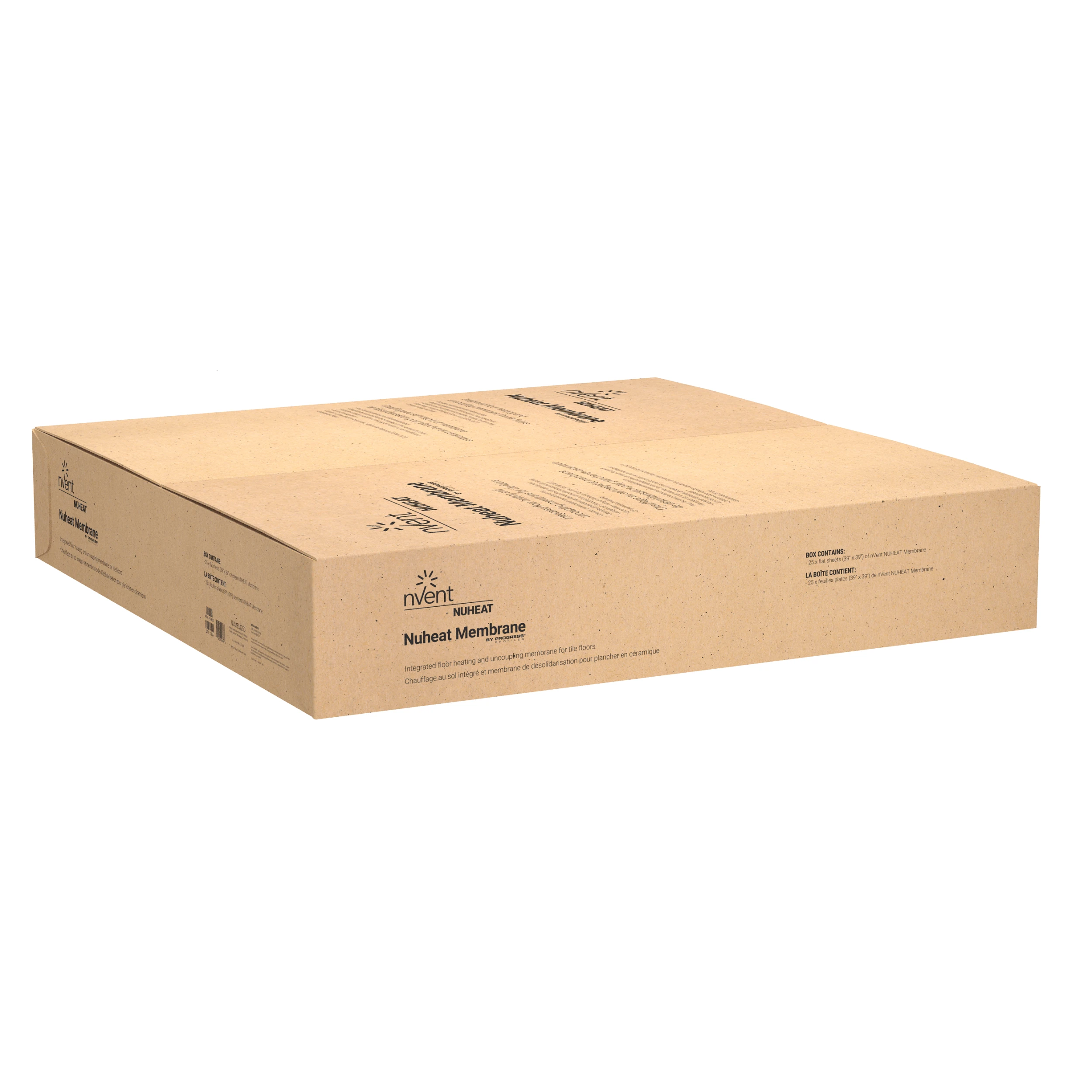

25 Sheets per Box | Sheet size: 39” x 39”
Material: Polypropylene
Thickness: 0.22 inches
Width: 39 inches
Operating Voltage: 120 V, 208 V, and 240 V
Power Output: 10-15 watts per square foot depending on wire spacing
Maximum Continuous Exposure Temperature: 194°F (90°C)
Heating Cable: 2-wire, grounded, twisted air with PVC outer jacket
Cold Lead: 2-wire, 16-18 AWG plus ground braid layer; 10 ft (3m) length
Recommended Spacing: 2-3-2 pillar spacing which provides 12 watts/sqft
** If you are installing over a concrete slab and require more heat, we recommend using 2-pillar spacing which produces 15 watts/sqft
