NVent Raychem Frostguard Freeze Protection Plug-In Kit 24 FT, Model FG124P

Description

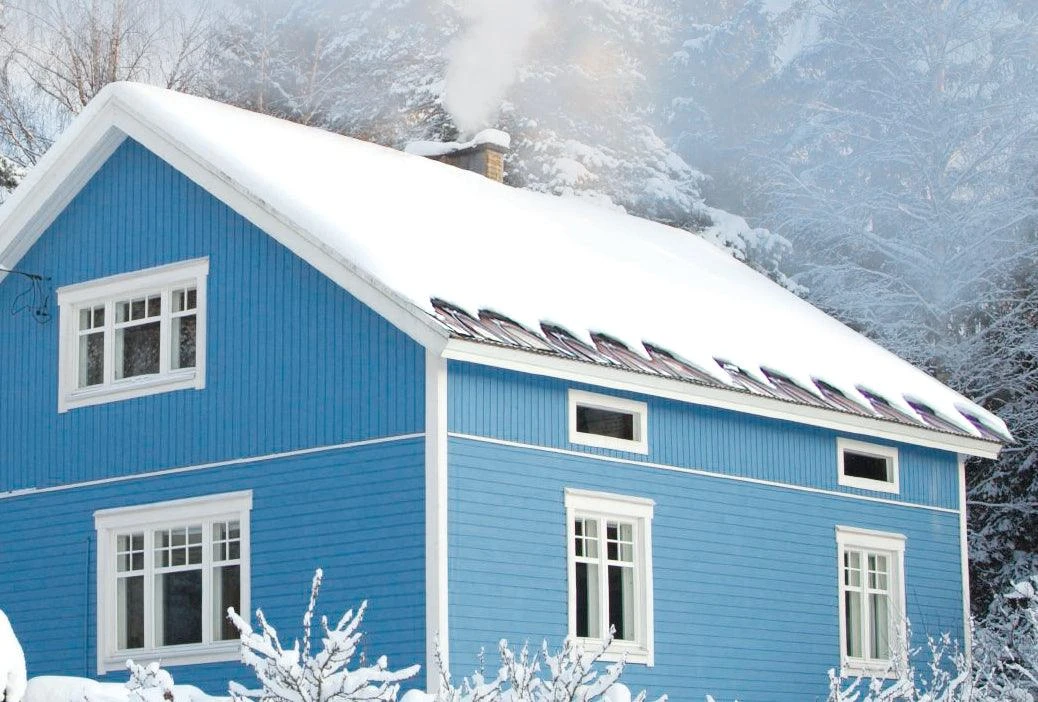

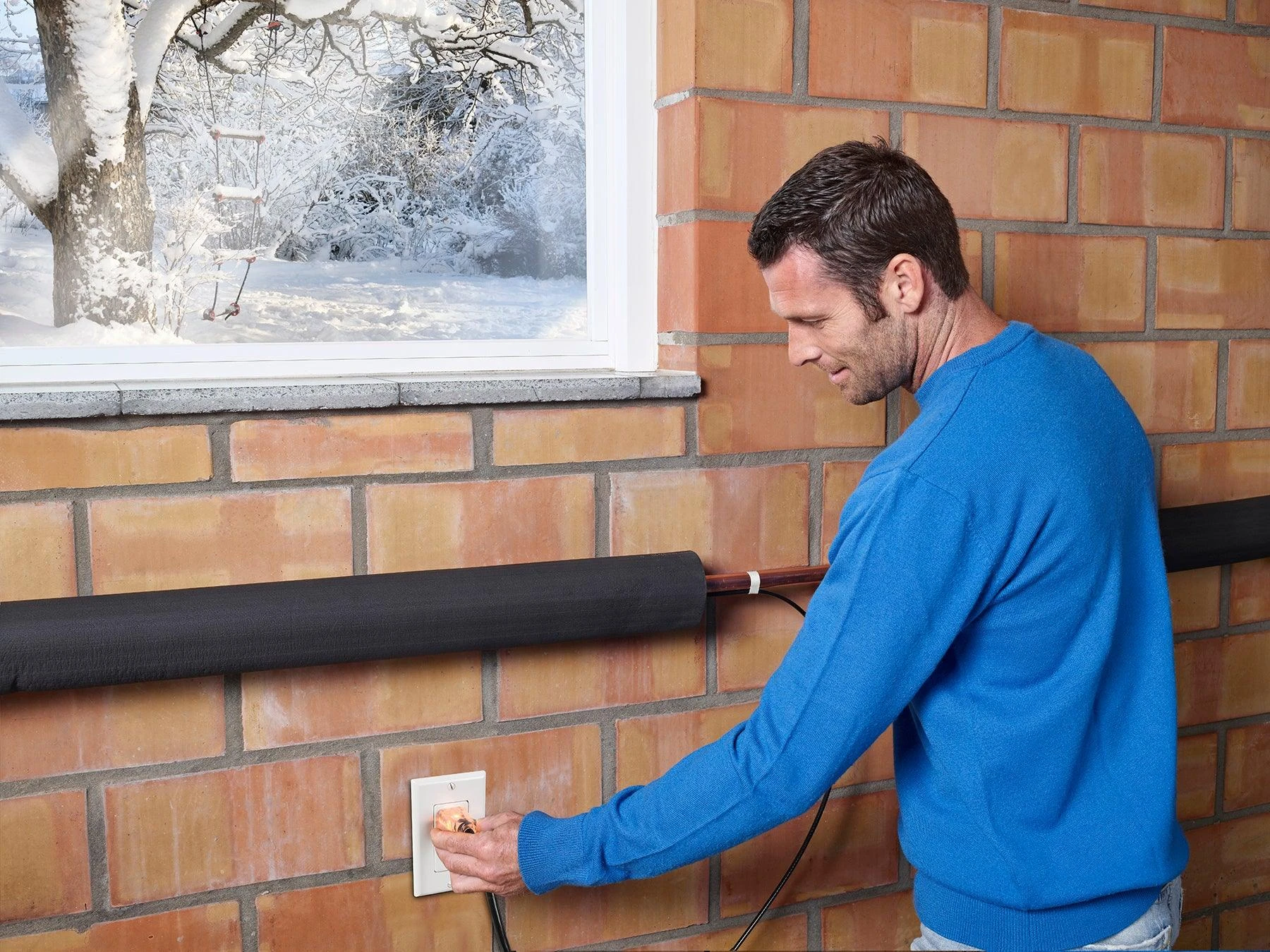

nVent Raychem FrostGuard pre-assembled self-regulating heating cables are designed for freeze protection of pipes and roof and gutter de-icing applications. Available as 120V, in various lengths with a 6 ft power cord.

Benefits

• Simple to design: 120 V version in 6, 12, 18, 24, 36, 50, 75 and 100 ft lengths each with a 6 ft power cord and 3-prong, grounded, lighted plug to show the system is on.
• Easy to install: pre-assembled with a plug and cold lead to avoid the need for connection by an electrician
• Energy efficient and safe: self-regulating cable, no overheating possible even when overlapped or closely spaced
• Reliable during long life: 2 year product warranty available, maintenance free.



Technical Information

Brand: NVent RAYCHEM
Lenght: 24 FT
Heating Cable Technology: Self-Regulating
Nominal Voltage: 120V
Color: Black
Ground Path Type: Braid
Min Installation Temperature: -15 °C
Nominal Width: 11.4 mm
Nominal Height: 6.1 mm
Max Continuous Exposure Temperature, Power On: 65 °C
Cold Lead Length: 1.83 m

Documents

Brochure (Roof & Gutter De-Icing)
Brochure (Pipe Freeze Protection)
Installation Manual
Datasheet
