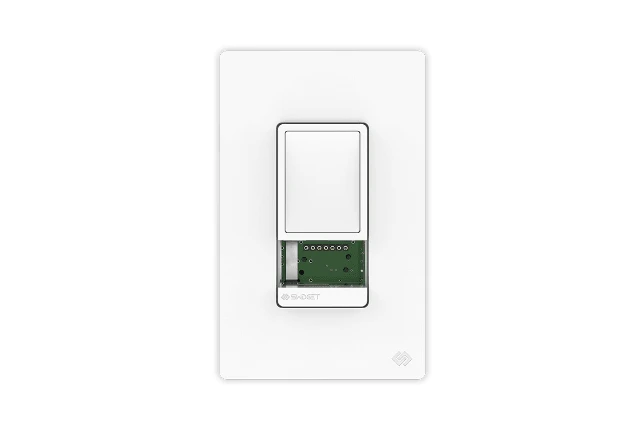

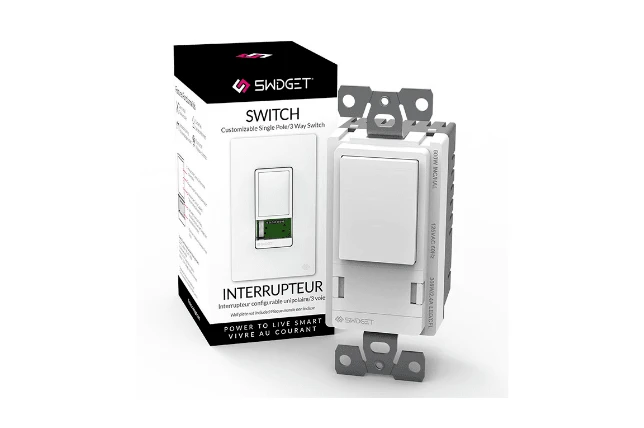

Panasonic Swidget On-Off Switch, Model S16001WA*

Description

The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system.

The On/Off Switch has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced – making Swidget the optimal choice for building renovations and new construction. The Swidget On/Off Switch, specifically designed for LED lighting, uses a simple 4-wire interface, making installation easy.

Features

• Single and 3-way wiring compatible for lighting and fan applications
• Capability for scene programming (Wi-Fi Inserts only)
• Direct power monitoring
• Wide range of customization and feature options with plug and play Swidget Inserts

Technical Information

Input power rating: 125VAC, 5A
Wiring type Pre-stripped wire leads (Line/Neutral): #16 AWG (Stranded), Ground screw
Testing and code compliance: UL508/ UL1310, CSA C22.2 #223 (Canada and US) – Apr 2020
Flammability: UL94 5VA
Environmental: Indoor installation only
Operating temperature: -10 °C to 40 °C) (14 °F to 104 °F)
Insert voltage output: Nominal 5VDC (+/- 5%)
Insert DC protection: CLASS 2 – Current limiting and thermal shutdown protection
Insert current output: Constant current maximum 2.0A
LED/CFL load rating: 250W
Incandescent/Halogen load rating: 600W
Horsepower load rating: 0.3HP
Switch configuration: Single, 3-Way
