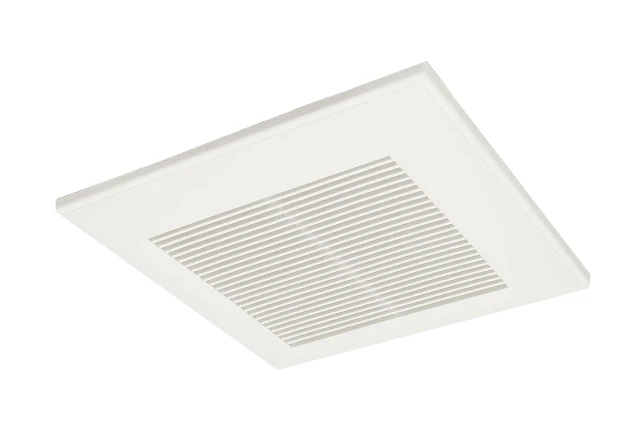

Panasonic WhisperFit DC 50/80/110 CFM, Model FV-0511VF1

Description

WhisperFit® DC is the perfect solution for any remodeler looking to quickly and easily replace an existing fan from below the ceiling. This fan enables you to utilize existing duct, while its low profile housing design ensures a proper fit in any ceiling with at least 5 5/8” depth.

Features

• Powerful ECM motor with SmartFlow™ technology for optimum airflow and CFM output
• Pick-A-Flow™ (50-80-110 CFM), for optimal exhaust power
• Single-hinged Flex-Z Fast® bracket provides flexible, fast and easy installation
• NEW slide and snap-in junction box and duct collar for greater flexibility when wiring and attaching the duct

Technical Information

Product family name: WhisperFit DC™
Air volume exhaust (CFM): 111 CFM @ 0.25″ SP, 80 @ 0.25″ SP, 50 @ 0.25 SP
Noise (sones): 1.2 @111CFM, 0.25″ SP | 0.8 @ 80 CFM, 0.25″ SP | 0.4 @ 50CFM, 0.25″
Energy efficiency (CFM/Watt): 7.7 CFM/Watt (111CFM 0.25SP)
Motor type (AC/DC): ECM (DC)
Duct diameter: 3″ (76.2 mm) or 4″ (101.6mm)
Lighted: No
Motion sensor: No
Moisture sensor/condensation: No
Multi-speed with time delay: Yes
Night light: No
Installation: Ceiling
Radiation damper available: No
Housing dimensions (L x W x H): 10 1/4″ x 10 1/4″ x 5 5/8″ (260.4mm x 260.4mm x 142.9mm
Grille size – Square inches (mm): 13″ W x 13″ L (330.2mm W x 330.2 mm L)
ENERGY STAR®, ASHRAE 62.2, LEED: Yes
cUL listed for tub/shower enclosure: Yes
