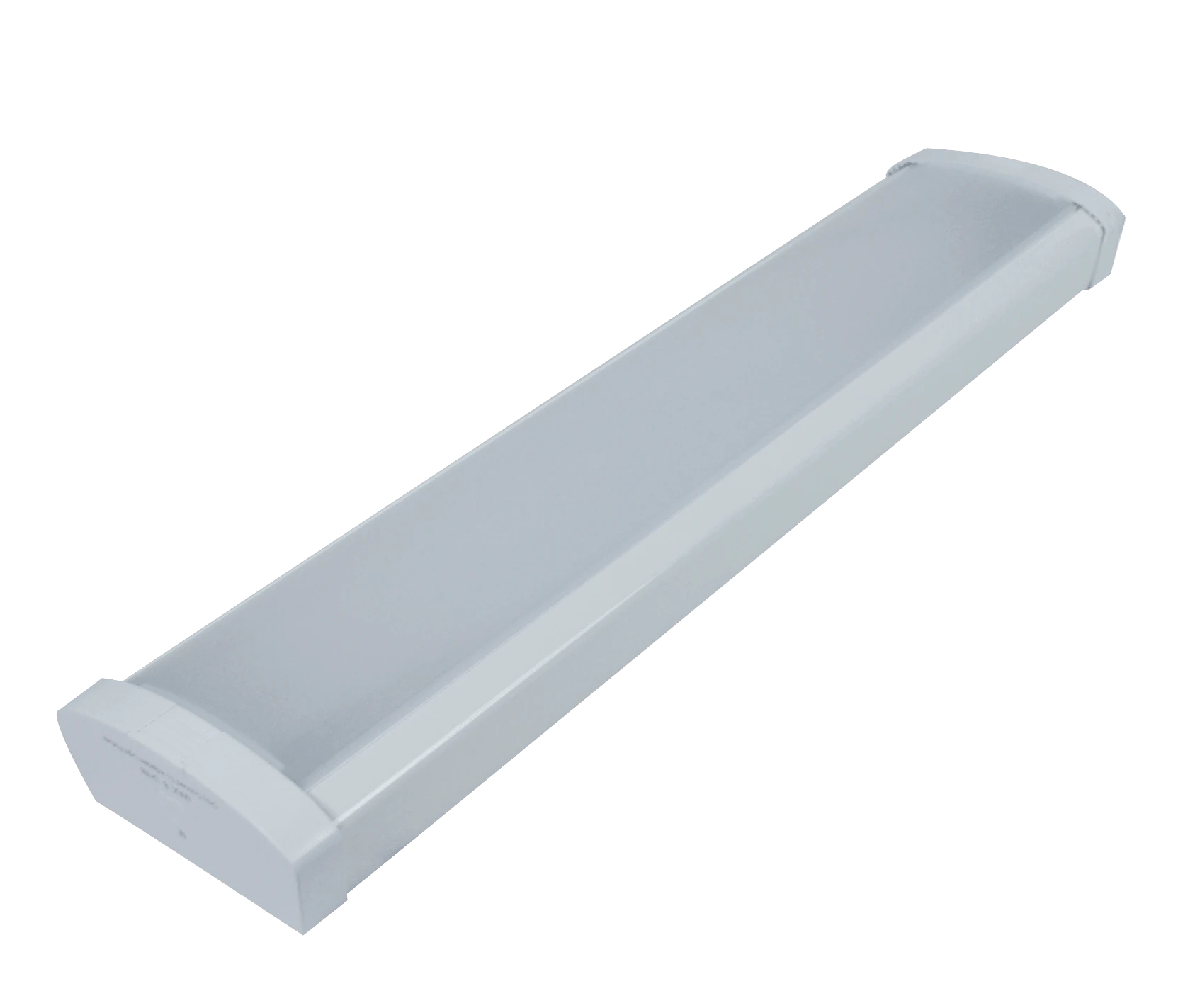

RAB Design Lighting 2 Feet LED Surface Mount Wrap With Link Connectors And Clips, Model SMW2N-LED24-B-4K-WHT-DIM-FR

Description

The SMW2N-LED Surface Mount Wraps are 2′ linkable linear fixtures for indoor use. This wraparound luminaire is easy to install and features a link connector for combining multiple fixtures in a row.

Benefits

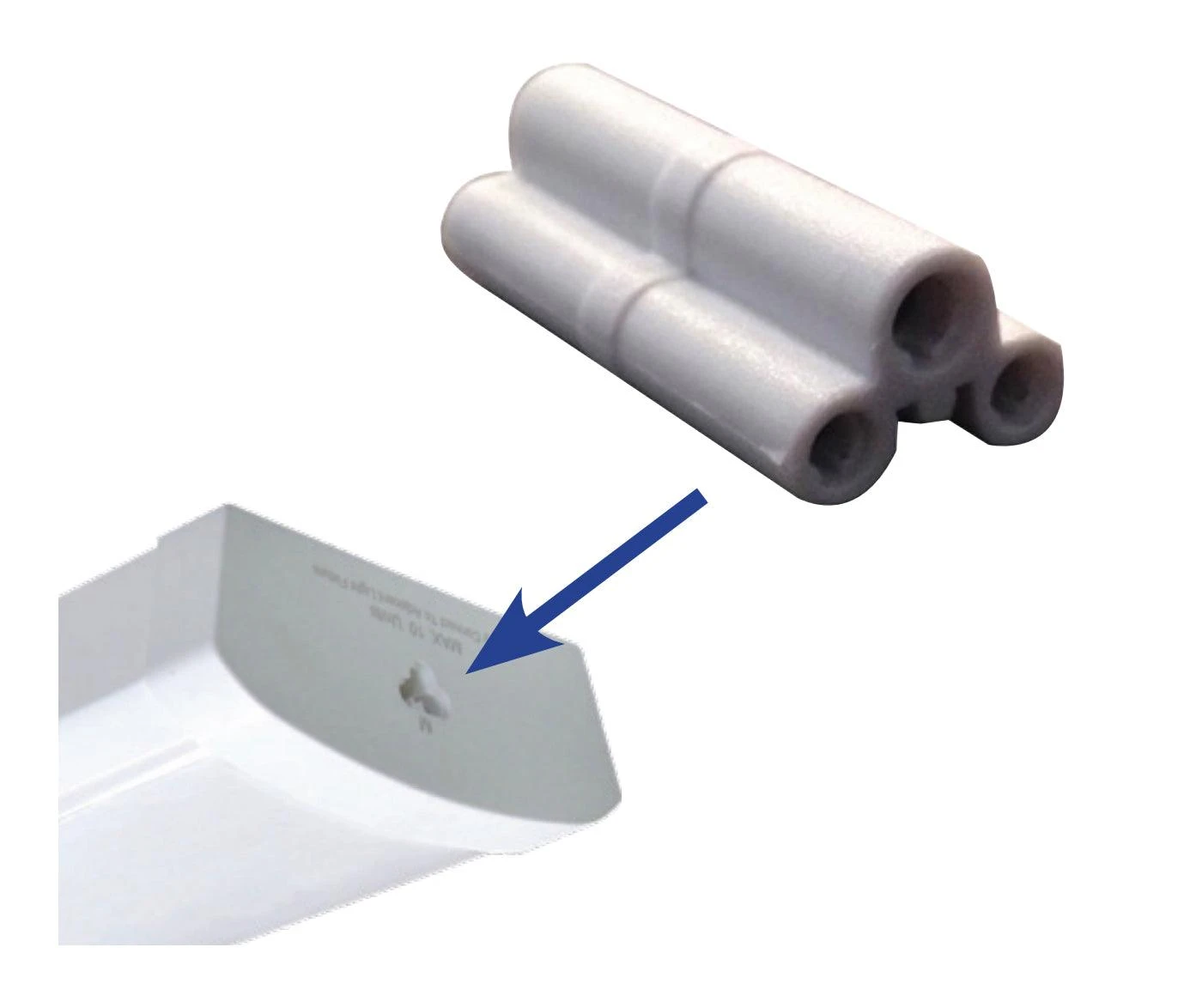

• Flexible link connector to easily combine up to 15 fixtures in a row for the SMW2.
• Clips on either end slide off for easy wiring and maintenance.
• Easy mounting directly on the wall or ceiling.
• Sturdy steel base with polycarbonate end caps.
• 0-10V Dimming is standard.
• Suitable for indoor applications.
• Frosted lens and white powder coat finish are standard.

Technical Information

Model: SMW2N-LED24
Watts: 24.5
Lumens: 2862
Efficacy: 116.4 lumens/watt
Voltage: 120-277V
Light Colour: 4000K Bright White
CRI: 85
THD: 11%
Operating Temp: -25°C to 55°C
Dimming: 0-10v Dimming
Standard Lens: Frosted Lens
Finish Option: White
Mounting Options: Ceiling Mount, Wall Mount
Warranty: 5 Years

Documents

Specification sheet
