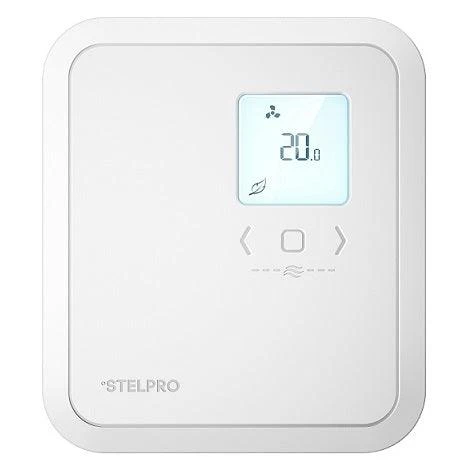

Stelpro 4000W Non-Programmable Electronic Thermostat For Fan Heaters, Model ST402NPFF

Description

Specially designed for fan heaters, the ST402NPFF delivers the utmost comfort thanks to the advanced features such as boost and lobby modes. Bringing together harmonious design, superior technology and safety, they offer comfort with complete simplicity.

***4 wires are required for the installation

Benefit

• Energy savings up to 12%
• ECO mode, one-click temperature setback
• Compatible with forced-air units
• Heat ”boost” feature, rapide temperature rise (with a timer)
• Lobby mode, compensates for fast temperature drops
• Safe design, sealed housing
• S3 mounting plate. Sturdy, simple and safe installation
• Display in Celsius or Fahrenheit
• Compatible with the Spider Ceiling Fan Heater
• Also available in 2500w

Technical Information

Model: ST402NPFF
Color: White
Finish: Molded plastic
Temperature range: 5 °C to 30 °c
Minimum Load Wattage: 150W at 120V, 260W at 208V, 300W at 240V
Maximum load Wattage: 2000W at 120VAC, 3475W at 208VAC, 4000W at 240VAC
Voltage: 240V/ 208V/ 120V
Amperage: 10.4
Frequency: 60hz

Document

Specification sheet
User Guide
