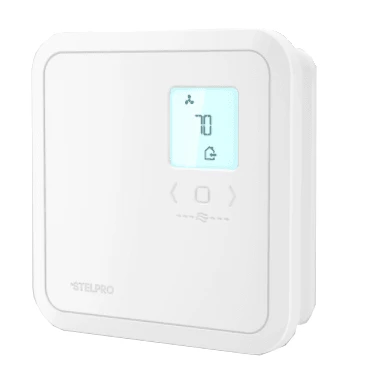

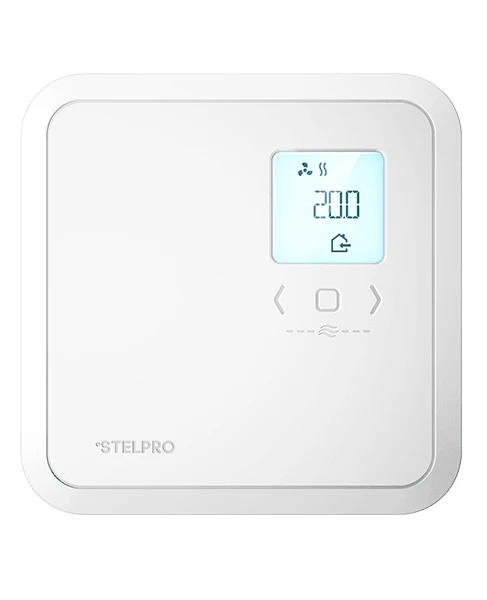

Stelpro Programmable Electronic Thermostat For Fan Heaters, Model ST402PFF

Description

This new programmable electronic thermostat designed specifically for fan heaters lets you make the most of your comfort thanks to advanced features such as “Boost” and “Lobby” modes. With simple three-step programming, you can manage your home’s comfort while enjoying energy savings up to 20% compared to a mechanical thermostat.



***4 wires are required for the installation

Benefits

• Energy savings up to 20%
• Simple three-step programming
• Compatible with forced-air units
• Heat ”boost” feature, rapid temperature rise (with a timer)
• Lobby mode, compensates for fast temperature drops
• Safe design, sealed housing
• S3 mounting plate. Sturdy, simple and safe installation
• Display in Celsius or Fahrenheit
• Possibility of four events on weekdays and two events on weekends
• Protection against power failure
• Non-programmable version available here

Technical Information

Model: ST402PFF
Color: White
Finish: Molded plastic
Temperature range: 5 °C to 30 °c
Minimum Load Wattage: 150W at 120V, 260W at 208V, 300W at 240V
Maximum load Wattage: 2000W at 120VAC, 3475W at 208VAC, 4000W at 240VAC
Voltage: 240V/ 208V/ 120V
Amperage: 16.7
Frequency: 60hz

Document

Specification sheet
User Guide
